Special Test Light Source (XQ5150)
☆ Product Description:
XQ5150 is kind of special test light source that designed by OSCOM. The light source can meet customers special test requirements. The light source is integrated with ATC, APC, RS232C technologies, and it is provide 1/2/4 channel bench or module light source, the representative wavelength is 365nm、532nm、635/650nm、780nm、1064nm、1940nm ect. XQ5130 is stable and reliable, easy to use, it is suitable for the application of develop laser device and high power fiber components fabrication test.
☆ Application Fields：
· Optical Fiber Communication Test · Optical Fiber Sensing Test
· Optical Fiber Components Production Test · Biomedical Test
· Industrial Laser Application Test · Specific Laser Application Test
|

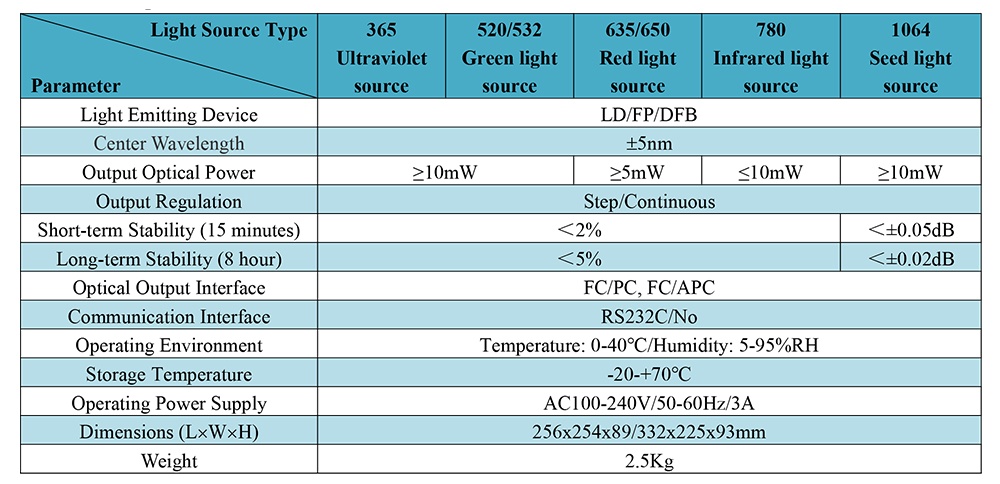

Parameters Light Source |
365 UV Light Source |
532 Green Light Source |
635/650 Red Light Source |
780 Infrared Light Source |
1064 Seed Light Source |
1940 Light Source |
|
Luminator Device |
LED |
LD |
LED |
LD |
LD |
FP |
|
Center Wavelength(nm) |
±1 |
±10 |
±5 |
±20 |
||
|
Spectral Width（nm） |
9 (FWHM ) |
- |
- |
≤5 (-20dB) |
≤1 ( FWHM ) |
≤15 （-3 dB） |
|
Output Light Power（dBm) |
≥500mW |
≥10 mW |
≥10 mW |
≤10 mW |
≥200 mW |
≥2 mW |
|
Light Spot（mm） |
f4、6、8、10、12 |
- |
f1 |
- |
- |
- |
|
Output Attenuation |
10~100% |
10~100% |
Stepping/ |
Stepping/ |
Stepping/ |
Stepping/ |
|
Short-term Stability(15minutes) |
＜2% |
＜2% |
＜2% |
＜2% |
＜±0.02dB |
＜±0.01dB |
|
Long-term Stability(8hours） |
＜5% |
＜5% |
＜5% |
＜5% |
＜±0.1dB |
＜±0.05dB |
|
Optical Fiber Connector |
Space |
Space |
FC/PC、FC/APC |
|||
|
Communication Interface |
RS232C/USB（Optional） |
|||||
|
Operation Temperature(℃) |
0～+40 |
|||||
|
Storage Temperature(℃) |
-20～+70 |
|||||
|
Supply Power |
AC 100～240V/50～60Hz/3A |
|||||
|
Dimension (L´W´H) |
330´225´93（mm）（Benchtop）/90´70´15（mm）（Module） |
|||||
☆ Ordering Information：
|
Product Type |
Luminator Device |
Appearance |
Operating Wavelength |
Output Power (dBm) |
Light Output Connector |
|
XQ5150 |
LD LED
|
M-Module B-Benchtop |
365nm 532nm 635/650nm 780nm 1064nm |
10=10dBm 27=27 dBm |
SPACE FC/UPC FC/APC
|
Example：XQ5150-LED-B-635-10-FC/APC
