CO2 Laser Glass Splicing System with Four Beams Output(XQ7210)

XQ7210 is a large diameter optical fiber fusion system based on four beams heat source that developed by OSCOM Technology. The system can splicing fibers from 50-2500um with fast, accurate and stable way. XQ7210 is suitable for producing high power combin
  • Overview
  • Parameter
  • Ordering

Product Description

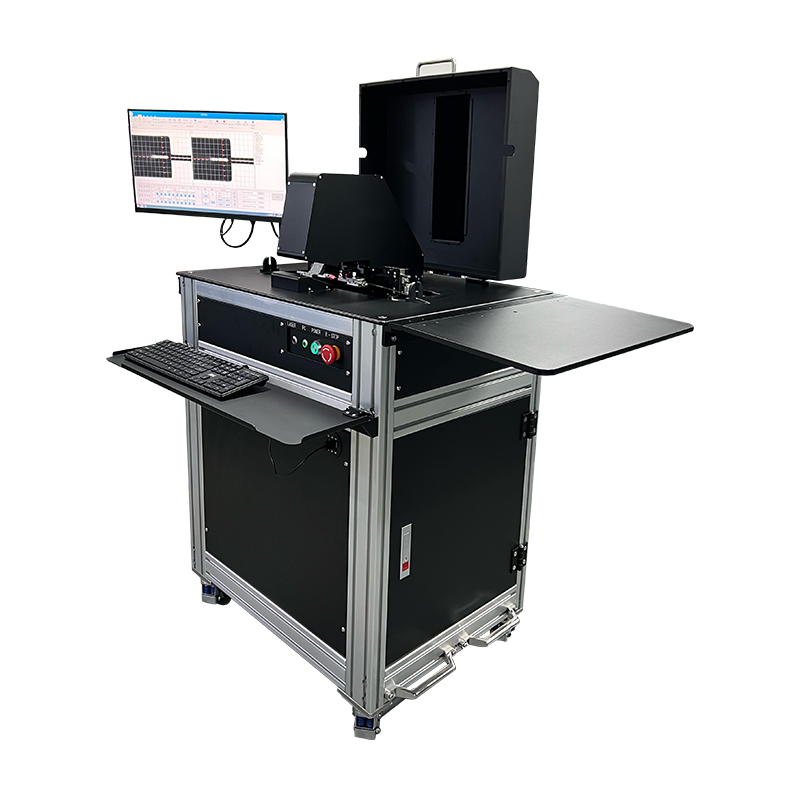

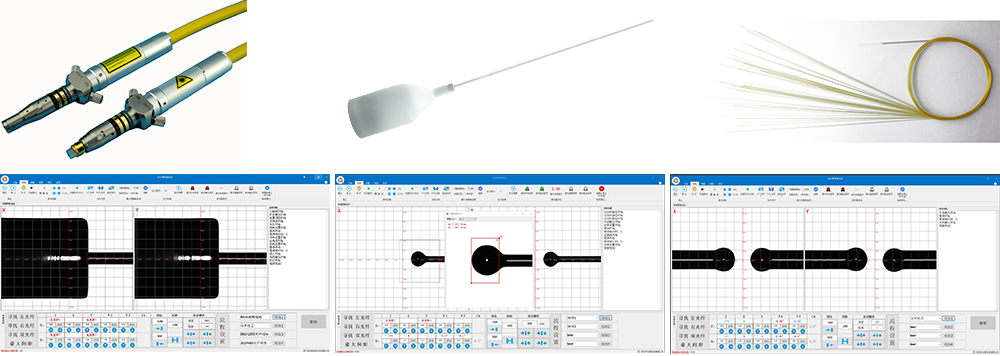

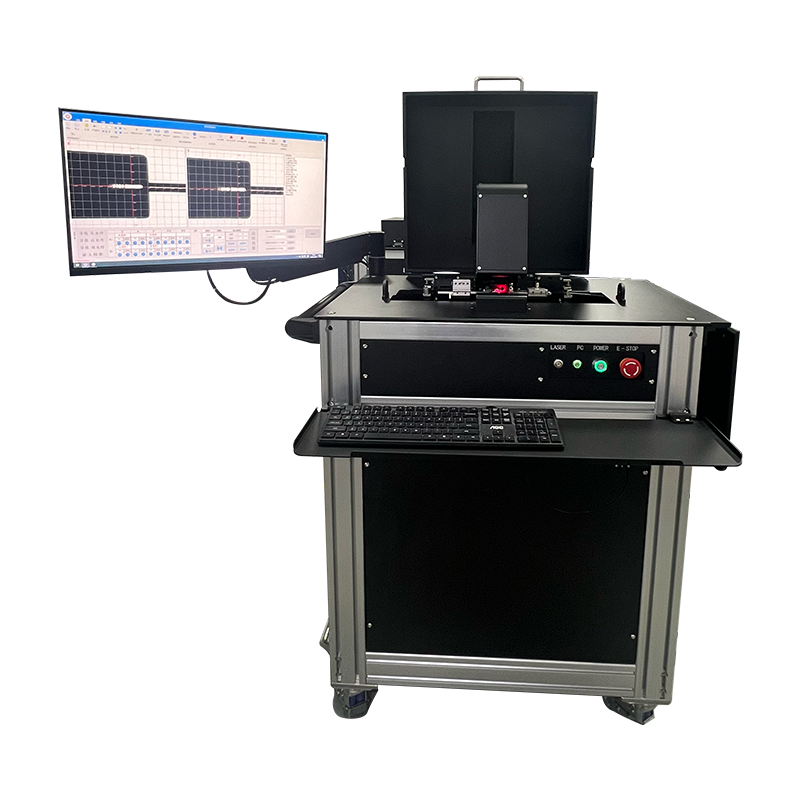

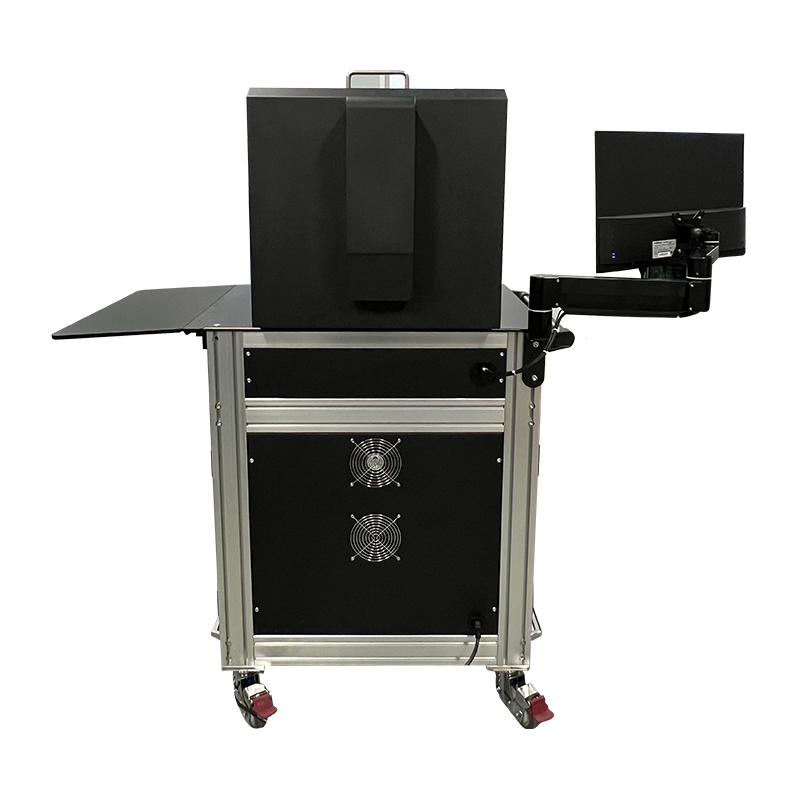

XQ7210 is a large diameter optical fiber fusion system based on four beams heat source that developed by OSCOM Technology. The system can splicing fibers from 50-2500um with fast, accurate and stable way. XQ7210 is suitable for producing high power combiner, end-caps and single splicing fiber, QBH ect. The system is stable and reliable, easy to use, and the application is flexible.


Features

· Four Beams Cross Heat

· It can realize high quality of splicing round and cylinder endcap

· Ten Vdoing fiber or endcap position dynamic adjustment

· Specified endcap holder,the diameter can be customized

· It can realize splicing pohotonic crystal fiber and endcap

· Professional microscope magnification imaging system combined with software system for welding process control

· High precision drive motor and guide rail system

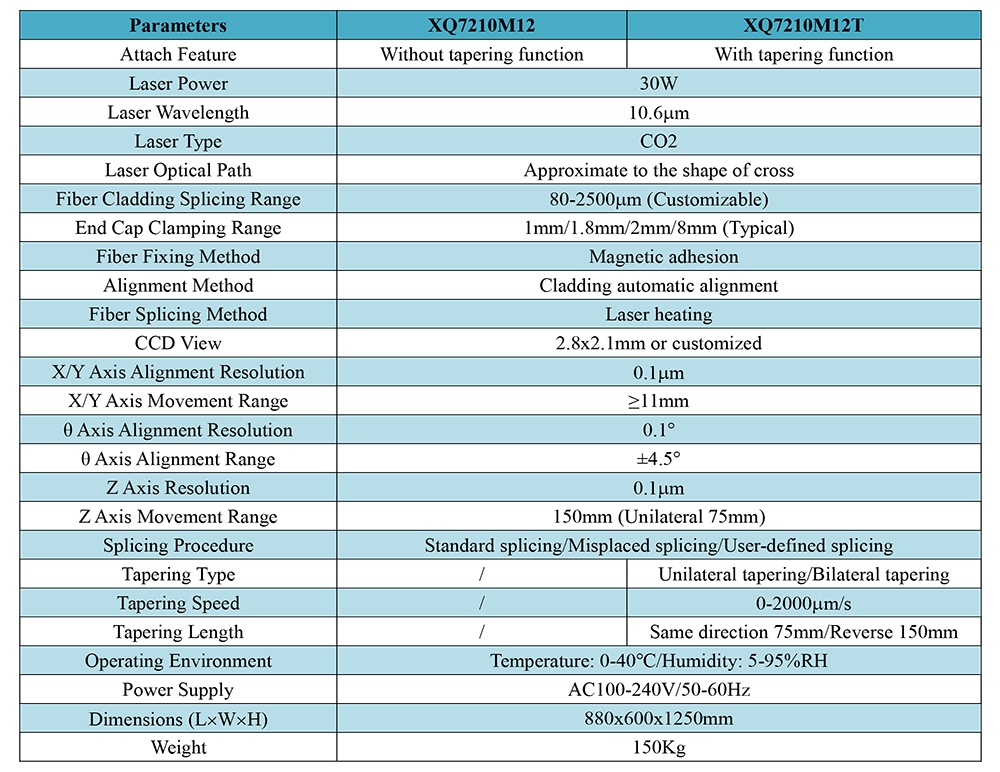

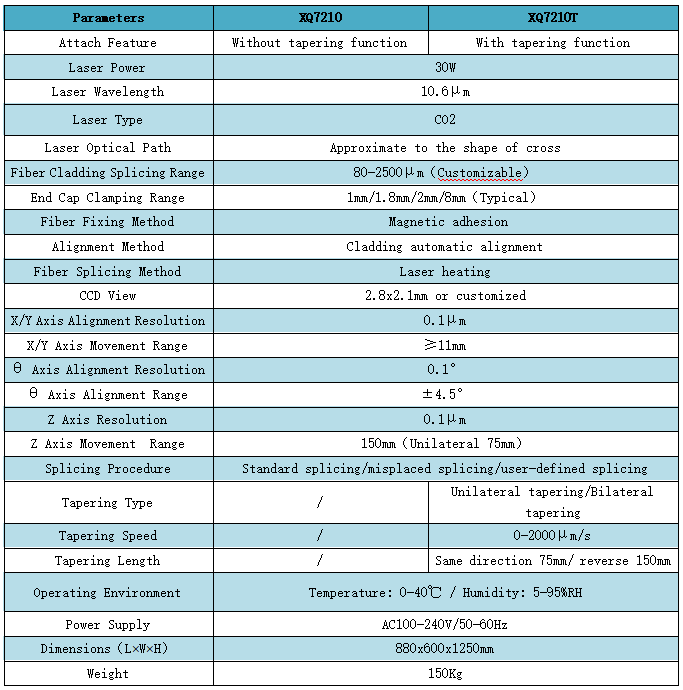

Technical Specifications:
