Fiber Tapering Equipment

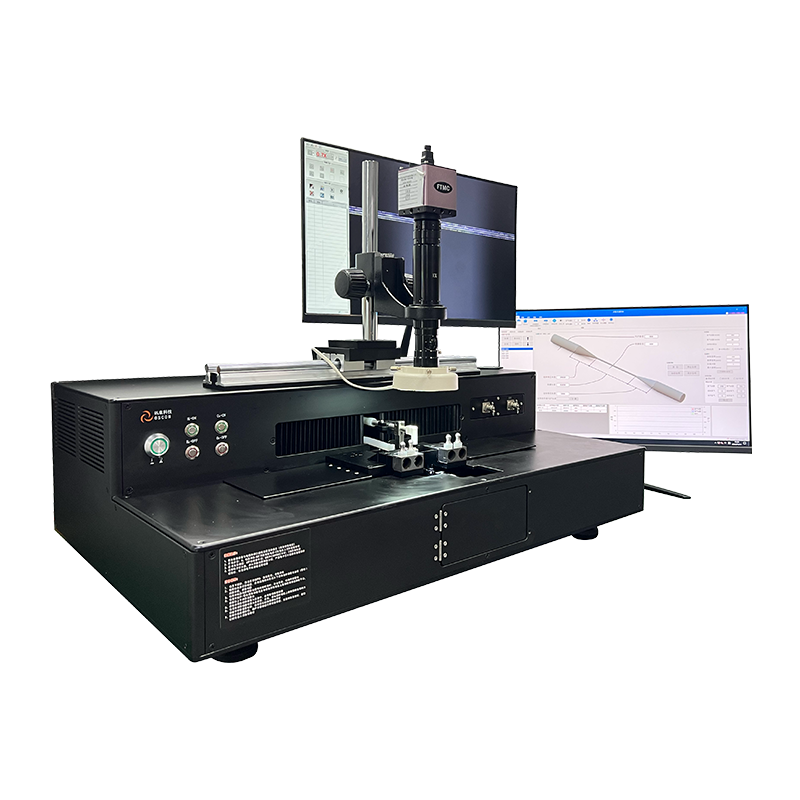

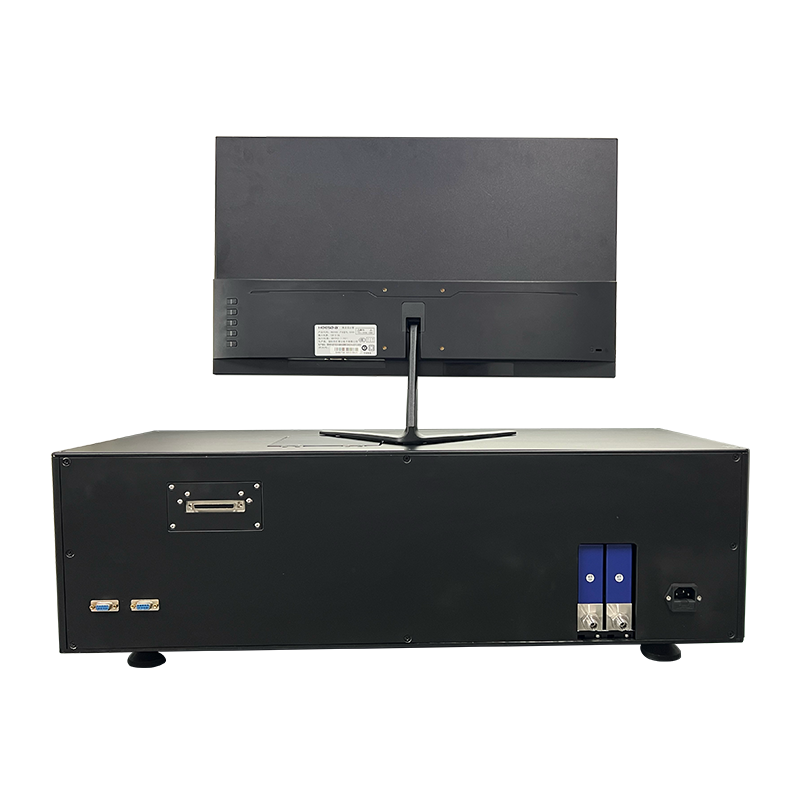

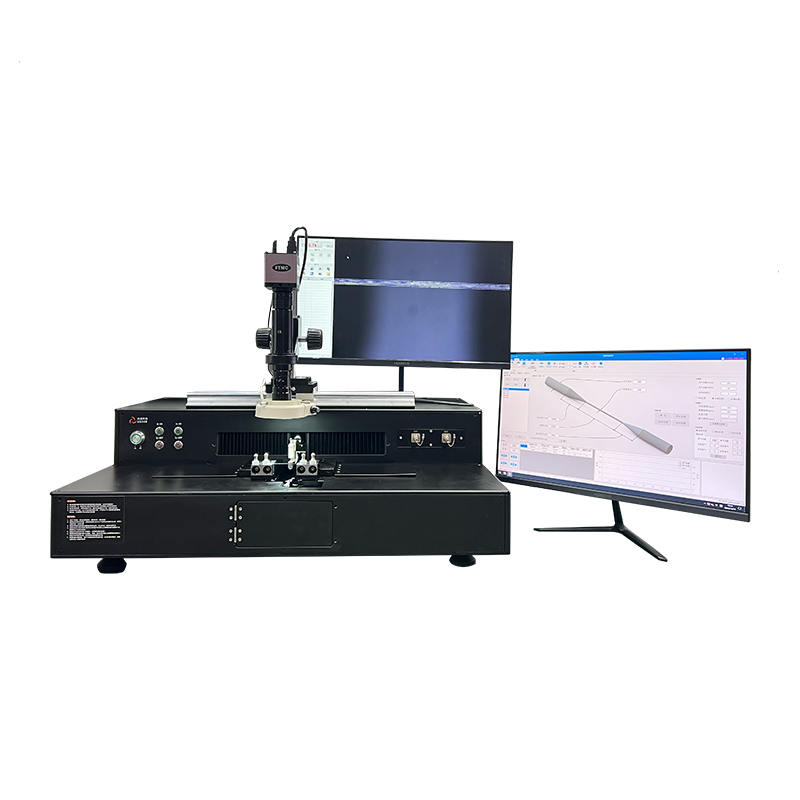

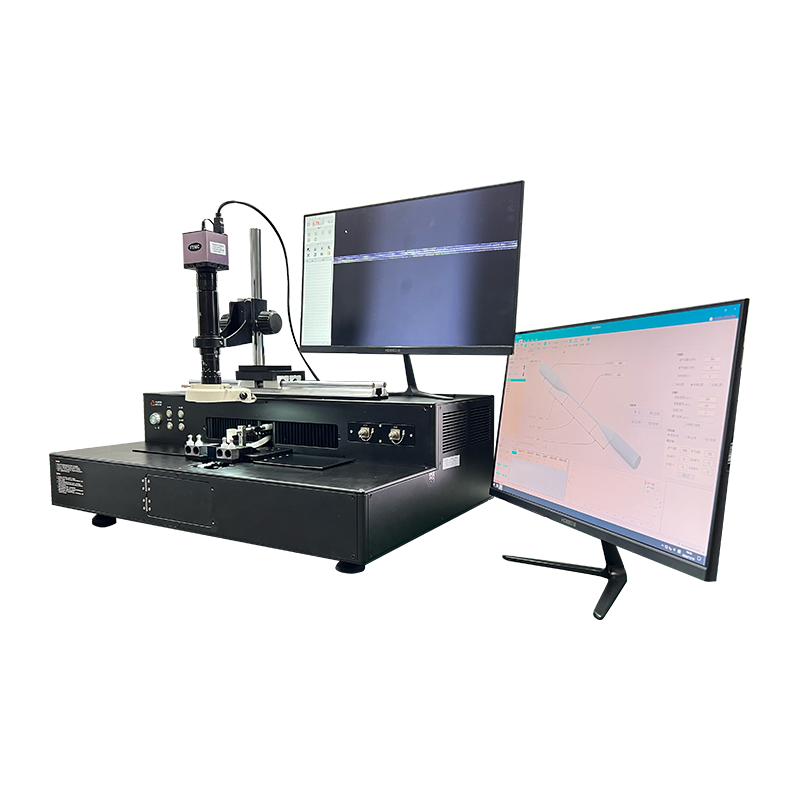

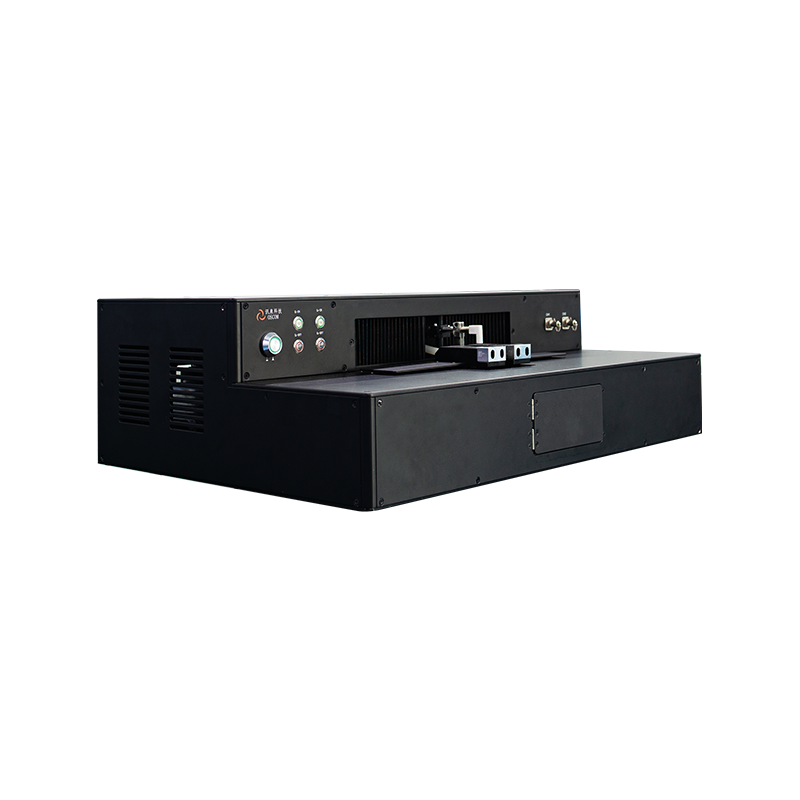

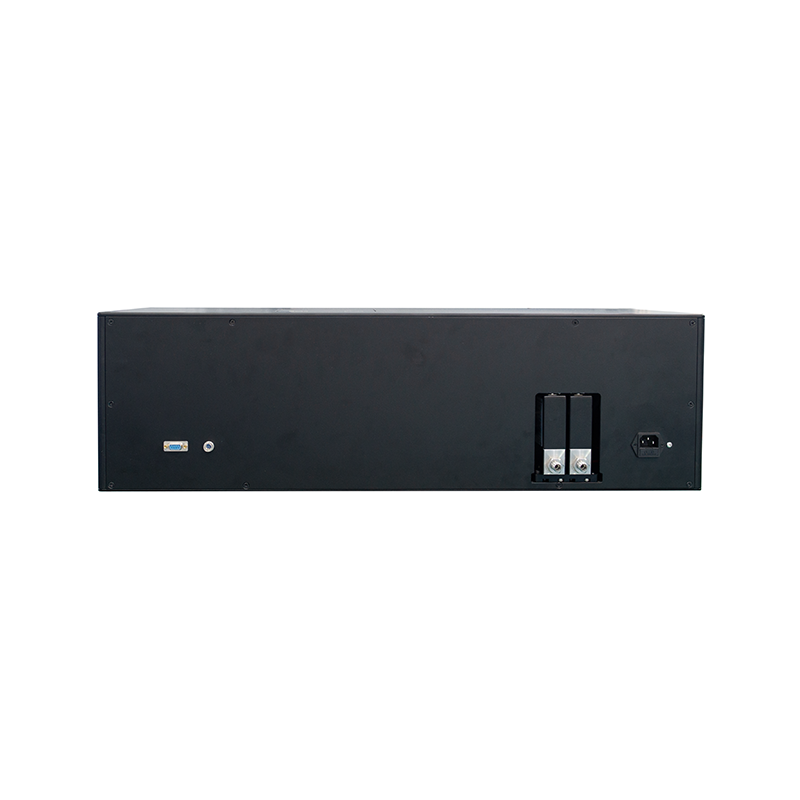

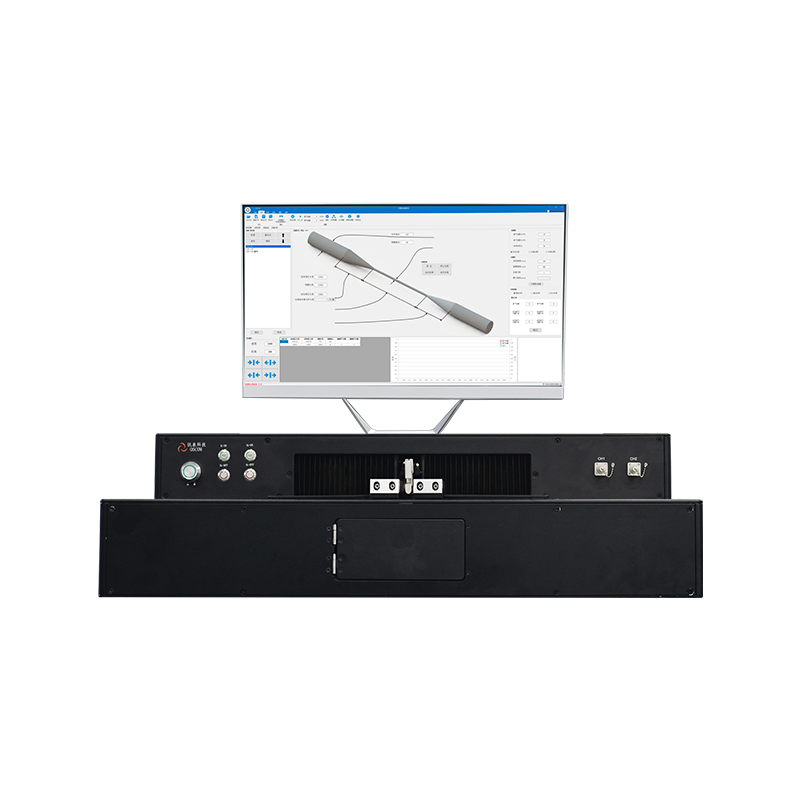

Multi-mode Fiber Tapering System (XQ7180)

XQ7180 is mainly for producing high power 3x1,4x1,6+1,7x1 optic fiber pump combiner and tapered lensed fiber. The main feature is the extension of taper length(200500mm), with the design of unilateral tapering/reverse tapering/fixed scanning or tracing sc
  • Overview
  • Parameter
  • Ordering


☆ Product Description

XQ7180 is mainly for producing high power 3x1,4x1,6+1,7x1 optic fiber pump combiner and tapered lensed fiber. The main feature is the extension of taper length200~500mm, with the design of unilateral tapering/reverse tapering/fixed scanning or tracing scanning, accelerated tapering or decelerated tapering. This fiber tapering machine configured with specific fiber clamps and water-cooled heater, high resolution measuring CCD microscope, large diameter in-line cleaver and in-line tension test, it can perfectly realize the fabrication of all optical fiber combiner. It is powerful for higher power fiber laser components and special tapered lensed fiber researching and developing. XQ7180 is stable and reliable, easy to use, and the all the functions of the machine can be configured according to requirement.












Technical Specifications:

Parameters

Unit

Value

Taper Length

mm

18~200 / 18~400 / 18~500

Scanning Width

mm

±50~100

Taper Speed

mm/s

0~1000

Taper Accuracy

mm

0.1/0.8

Scanning Accuracy

mm/step

0.02

Motion Accuracy of Packaging Stage

mm/step

0.02

Range of H2 Gas Flow

sccm

0~300 / 0~500 / 0~1000 / 0~10000

Range of O2 Gas Flow

sccm

0~100 / 0~200 / 0~500 / 0~1000

Taper Mode

-

Unilateral/Reverse Tapering

Scanning Mode

-

Fixed/Tracking Scanning

Fiber Holder Acceleration Speed

mm/min^2

±0~200

Photo Detector

-

InGaAs/Si

Wavelength Range

nm

800~1700/400~1100

Dynamic Range of Optical Power Detection

dBm

-60~+3

Resolution of Optical Power Detection

dB

0.01

Operation Environment

-

Temperature23±2℃ / Humidity50~60%RH

Power Supply

-

AC100~240V/50~60Hz/5A

DimensionsL´W´H

mm

800´550´250



☆ Ordering Information

Product Type

XQ7180

Application

(N+1) ´1/N´1 Fiber Combiner

Optical Fiber Rod Taper

Configurations

Separated HeaterCeramics
(N+1) ´1/N´1 Fiber Holder

1 Channel PD

Separated HeaterCeramics
Customized Fiber Holder

1 Channel PD
