Pump Test Light Source (XQ5130)
☆ Product Description:
XQ5130 is kind of pump test light source that designed by OSCOM. It is uses pump laser device as emission source. The light source is integrated with ATC, APC, RS232C technologies, and with the design of good auxiliary cooling system. The light source provided with 1/2 channel bench or light source module, the representative wavelength is 793nm、808nm、830nm、915nm、940nm、980nm、1480nm ect. XQ5130 is stable and reliable, easy to use, it is suitable for the application of develop laser device and high power fiber components fabrication test.
☆ Application Fields：
· EDFA Test · Fiber Laser Test
· Optical Fiber Components Fabrication Test · Industrial Laser Application Test
· Military Laser Application Test

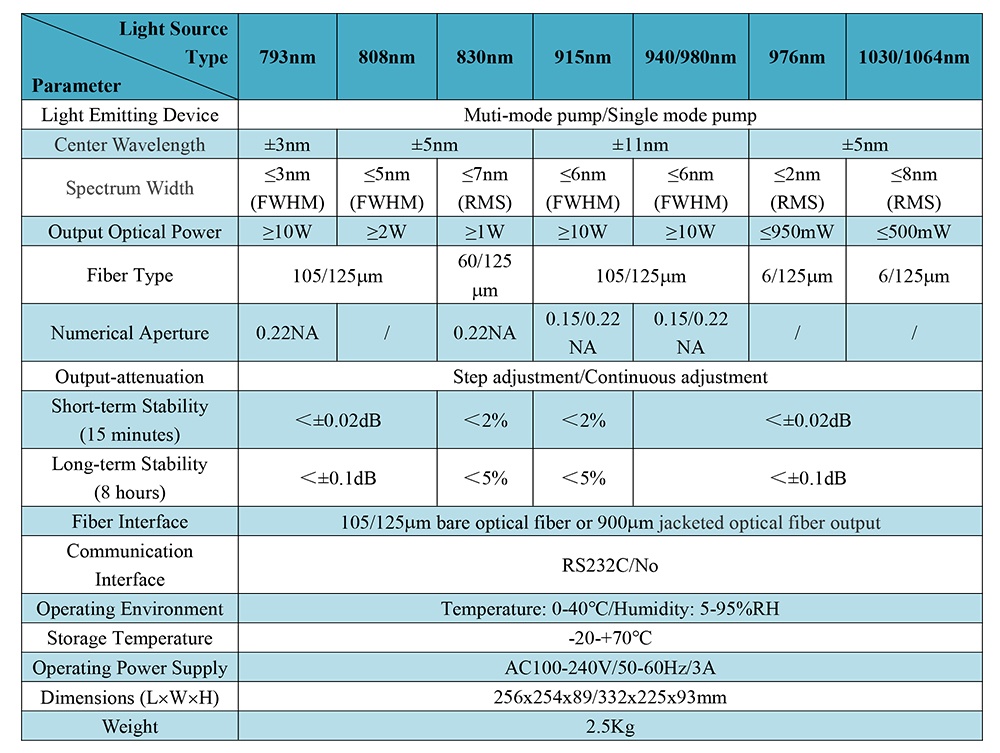

☆ Technical Specifications：
|
Parameters \ Light Source |
793 PUMP |
808 PUMP |
830 PUMP |
915 PUMP |
940/980 PUMP |
976 PUMP |
1480 PUMP |
|
Luminator Device |
Multi Mode Pump |
Single Mode Pump |
|||||
|
Center Wavelength(nm) |
±3 |
±5 |
±11 |
974~980 |
±10 |
||
|
Spectral Width（nm） |
≤3 (FWHM) |
≤5 ( FWHM ) |
≤7 (RMS) |
≤6 ( FWHM ) |
≤6 ( FWHM ) |
≤2 (RMS) |
≤8 (RMS) |
|
Output Light Power（dBm) |
≥10 W |
≥2W |
≥1W |
≥10 W |
≥10 W |
≤950mW |
≤500mW |
|
Fiber Type（mm） |
105/125 |
60/125 |
105/125 |
6/125 |
9/125 |
||
|
Numerical Aperture(NA) |
0.22 |
/ |
0.22 |
0.15/0.22 |
0.15/0.22 |
/ |
/ |
|
Output Attenuation |
Step By Step Regulation/Continuous Adjustment |
||||||
|
Short-term Stability (15minutes) |
＜±0.02dB |
＜2% |
＜±0.02dB |
＜±0.01dB |
|||
|
Long-term Stability(8hours） |
＜±0.1dB |
＜5% |
＜±0.1dB |
＜±0.05dB |
|||
|
Optical Fiber Connector |
105/125mm bare fiber or 900mm loose tube |
||||||
|
Communication Interface |
RS232C/USB（optional） |
||||||
|
Operation Temperature(℃) |
0～+40 |
||||||
|
Storage Temperature(℃) |
-20～+70 |
||||||
|
Supply Power |
AC 100～240V/50～60Hz/3A |
||||||
|
Dimension (L´W´H) |
330´225´93mm(Benchtop) 150´125´30mm（Module） |
||||||
☆ Ordering Information：
Product Type
Luminator Device
Appearance
Channel
Operating Wavelength
Output Power (dBm)
Optical Fiber Type
Light Output Connector
XQ5130
SM=Single mode
MM=Multi mode
M-Module
B-Benchtop
R-Rack
1=1ch
2=2ch
915nm
980nm
…
10=10dBm 33=33dBm
…
6=6/125
9=9/125
105=105/125
BF=bare fiber
900=900mm loose tube
Example：XQ5130-MM-B-915-40-105-BF
