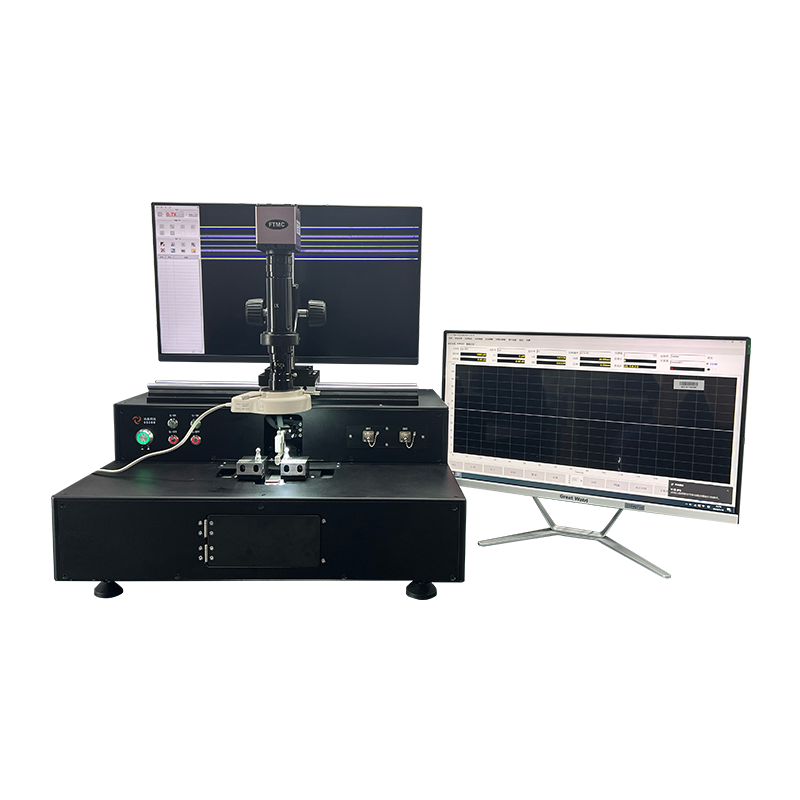

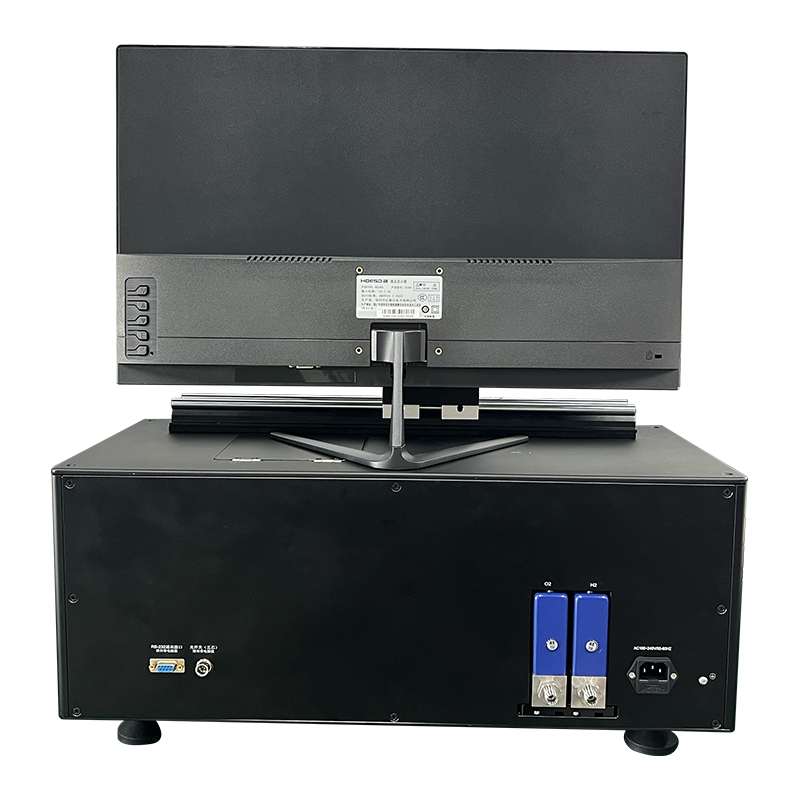

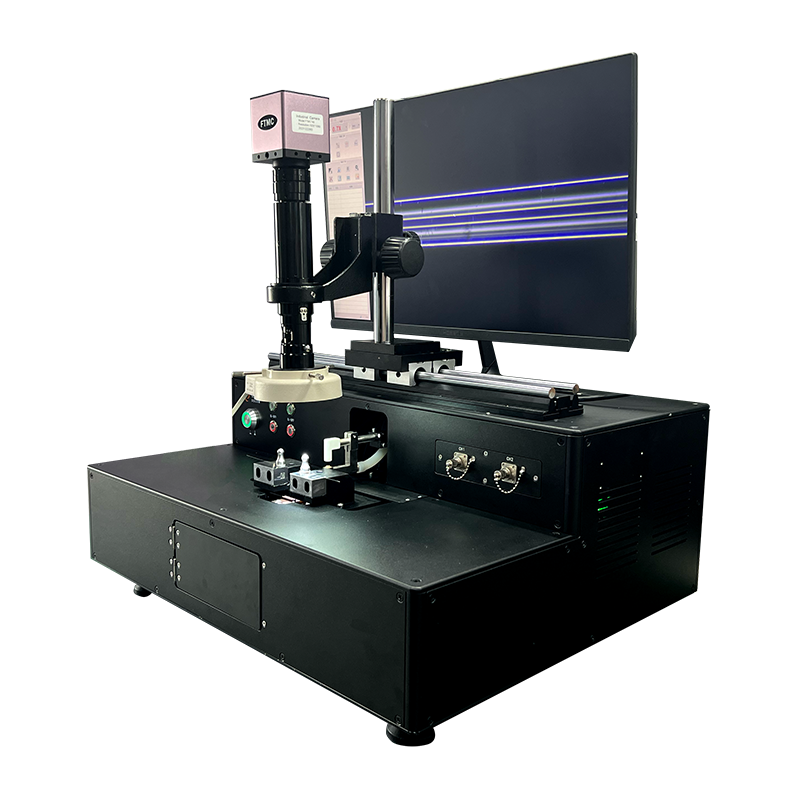

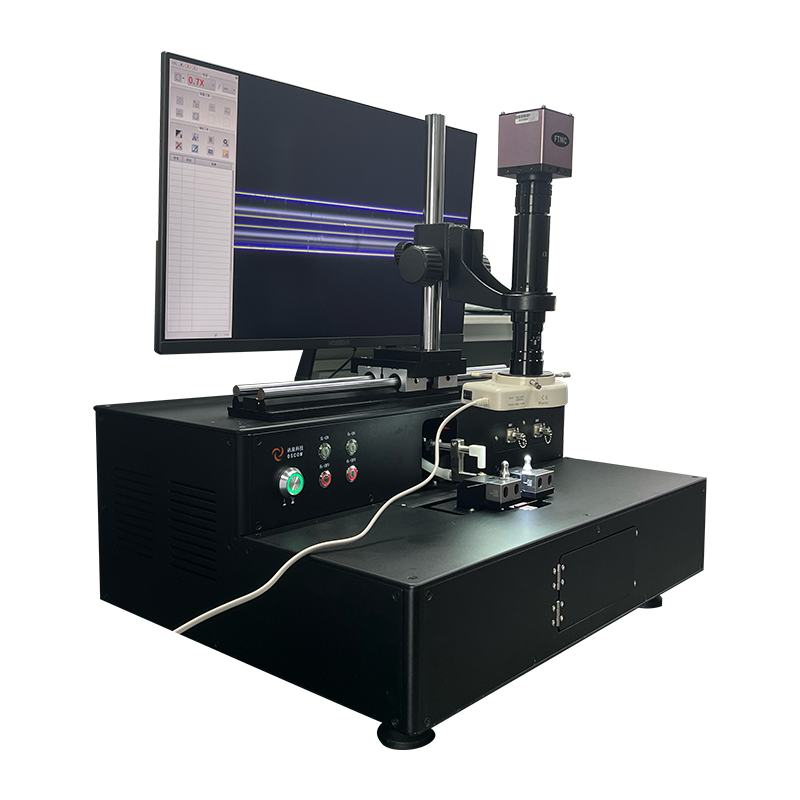

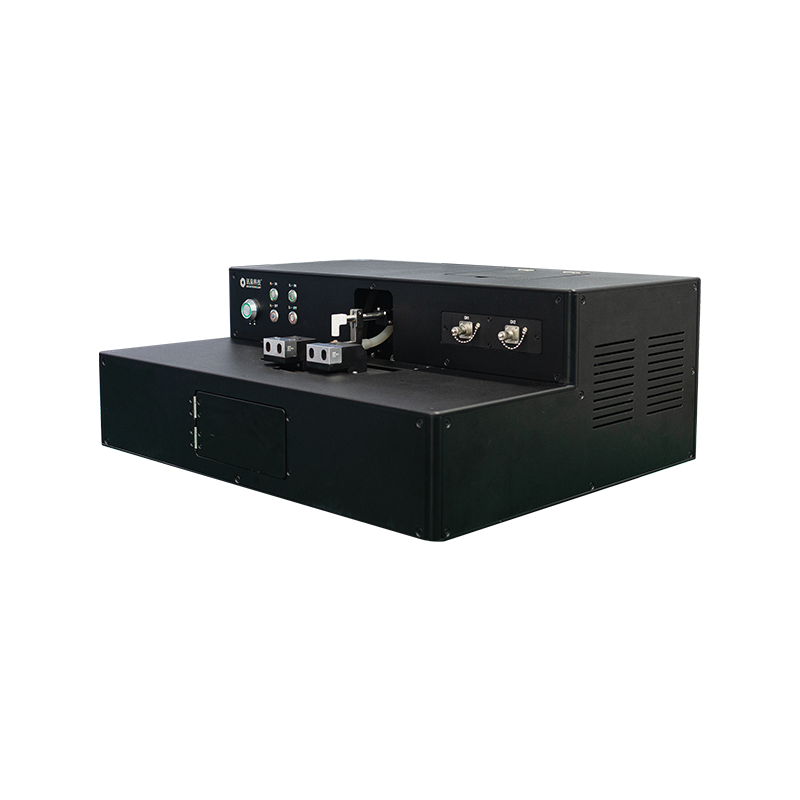

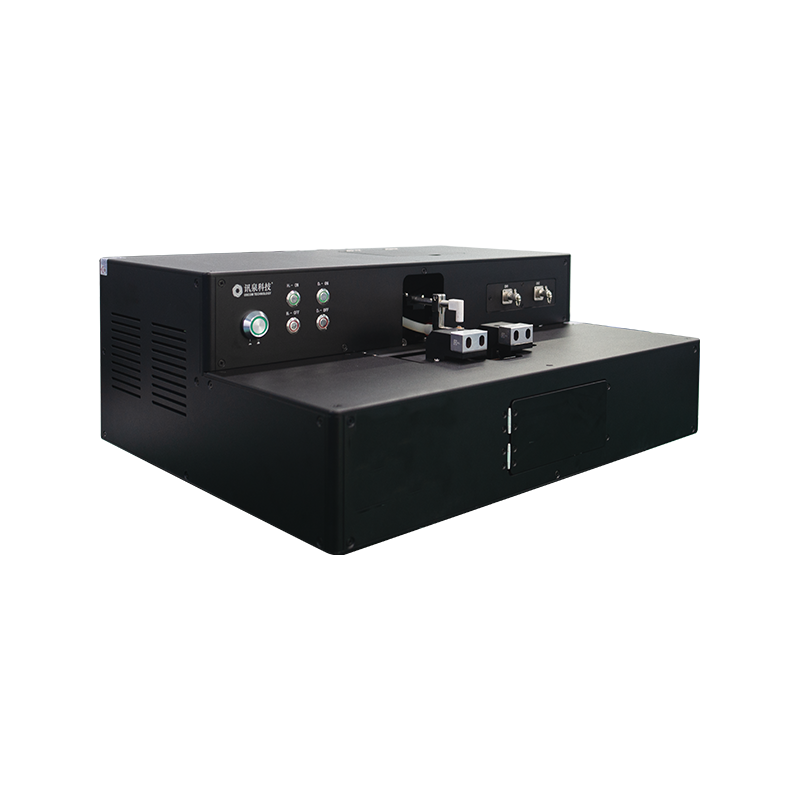

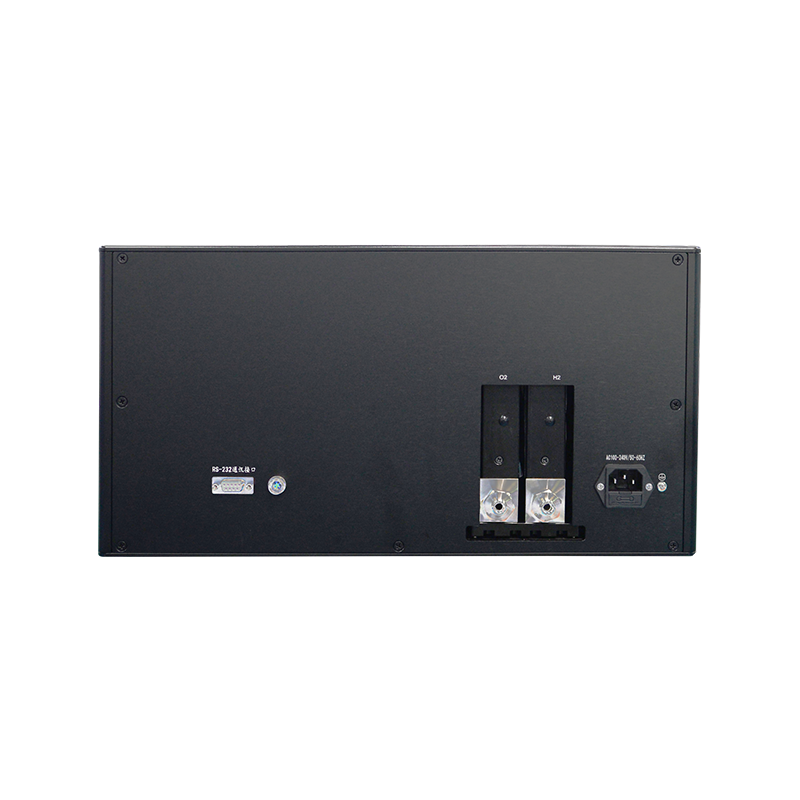

Normal (2+1)x1 Fiber Combiner Tapering System (XQ7140)
Product Description:
XQ7140 is designed for producing normal（1+1）x1/（2+1）x1/3x1 fiber combiner components,including all kinds of Non-PM（1+1）x1/（2+1）x1/3x1 fiber combiner ect. XQ7140 is easy to use, stable and reliable. Normal output of（1+1）x1/（2+1）x1/3x1 fiber combiner for a skilled operator is ≥30PCS/8hours.

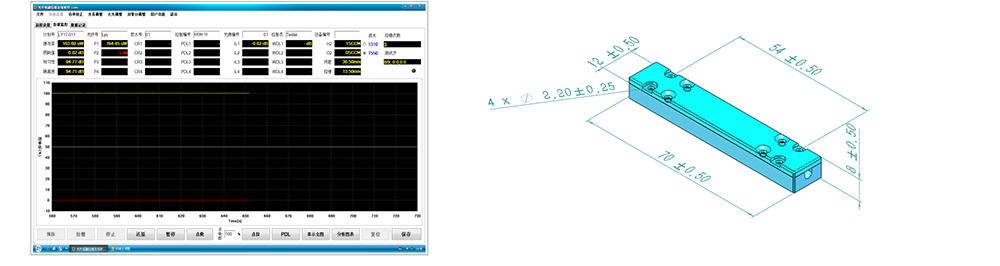

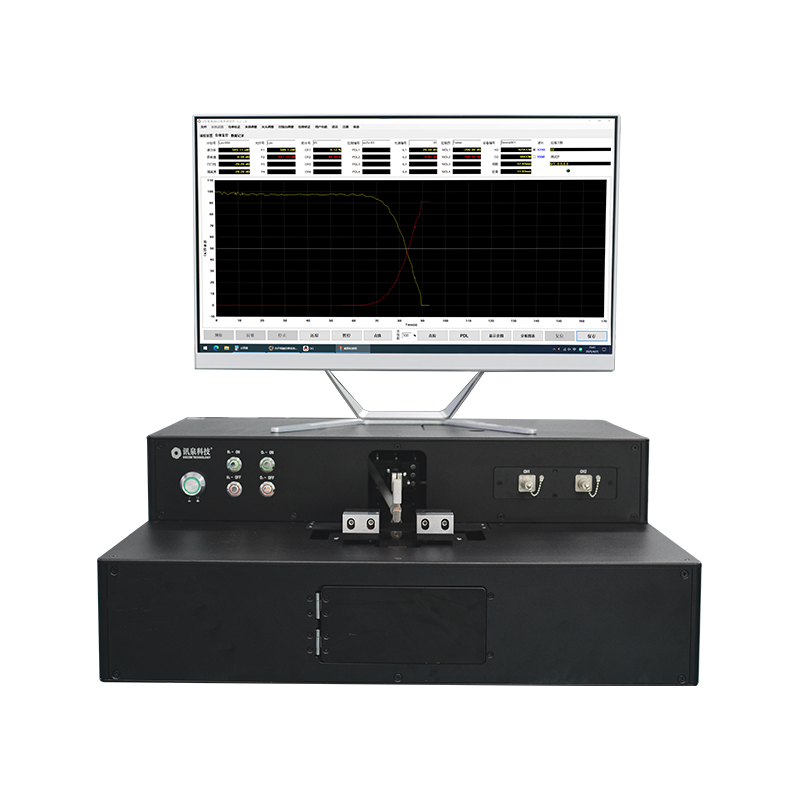

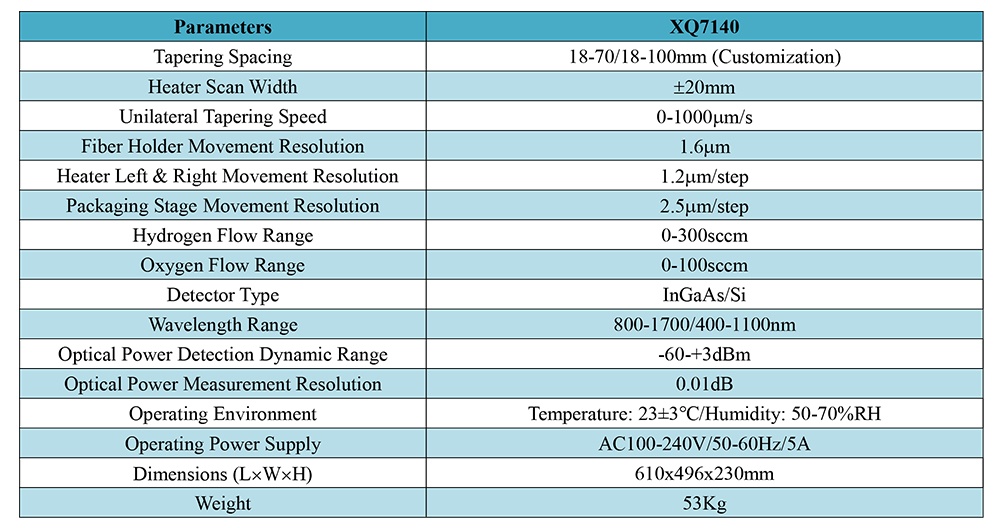

Technical Specifications:
Parameters
Unit
Value
Taper Length
mm
18~70
Scanning Width
mm
±20
Taper Speed
mm/s
0~1000
Taper Accuracy
mm
0.1/0.8
Scanning Accuracy
mm/step
0.02
Motion Accuracy of Packaging Stage
mm/step
0.02
Range of H2 Gas Flow
sccm
0~300
Range of O2 Gas Flow
sccm
0~100
Photo Detector
-
InGaAs
Wavelength Range
nm
800~1700
Dynamic Range of Optical Power Detection
dBm
-60~+3
Resolution of Optical Power Detection
dB
0.01
Operation Environment
-
Temperature：23±2℃ / Humidity：50~60%RH
Power Supply
-
AC100~240V/50~60Hz/5A
Dimensions（L´W´H）
mm
610´496´270
Ordering Information：
|
Product Type |
XQ7140 |
||
|
Application |
（1+1）´1 Fiber Combiner |
（2+1）´1 Fiber Combiner |
3´1 Fiber Combiner |
|
Configurations |
Separated Heater（Ceramics） （2+1）´1 Fiber Holder 1 Channel PD |
Separated Heater（Ceramics） （2+1）´1 Fiber Holder 1 Channel PD |
Separated Heater（Ceramics） （2+1）´1 Fiber Holder 1 Channel PD |
