Broadband Test Light Source (XQ5140)
☆ Product Description:
XQ5140 is kind of broadband test light source that designed by OSCOM. The emission theory is ASE and SLED. The light source is integrated with ATC, APC, RS232C technologies, and provided bench or module light source. The representative wavelength is 1060nm、1310nm、1550nm、1250~1650nm、2000nm ect。XQ5120 is stable and reliable, easy to use, it is suitable for optical components testing.
☆ Application Fields：
· Optical Fiber Communication Test · Optical Fiber Sensing Test
· Optical Fiber Components Production Test · Light Module Production Test
· Optical Fiber Communication System Integration · Construct Automatic Test System

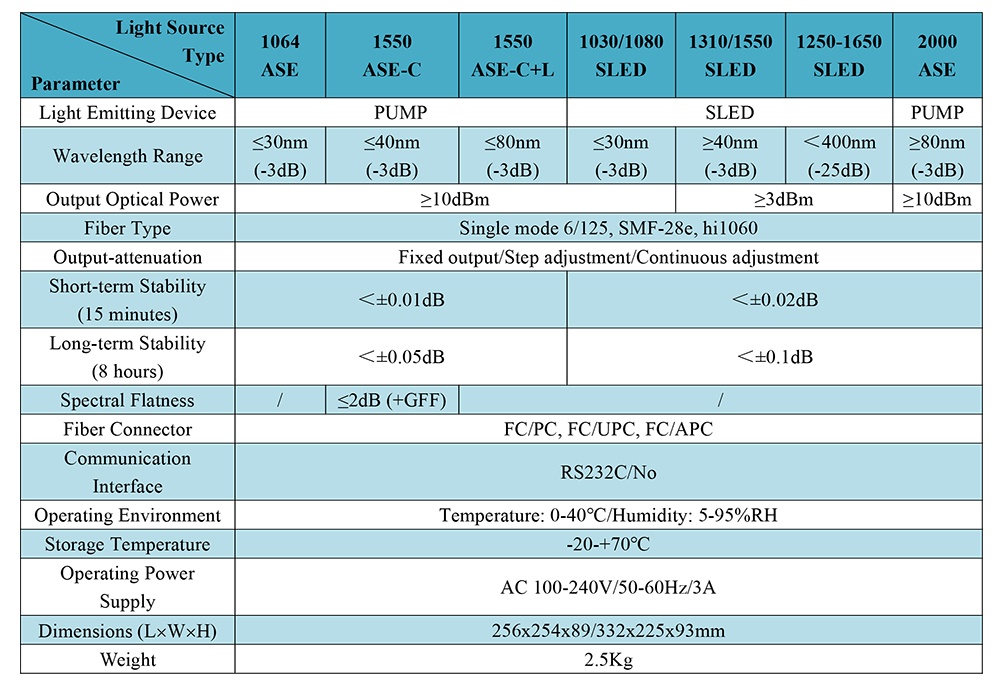

☆ Technical Specifications：
|
Parameters Light Source |
1060 ASE |
1550 ASE-C |
1550 ASE-C+L |
1310 SLED |
1550 SLED |
2000 ASE |
|
Luminator Device |
PUMP |
SLED |
PUMP |
|||
|
Center Wavelength(nm) |
1060 |
1550 |
1550 |
1310 |
1550 |
1960 |
|
Spectral Width（nm） |
≤30 (-3dB ) |
≤40 (-3dB) |
≤80 (-3dB) |
≥40 (-3dB) |
≥40 (-3dB) |
≥80 (-3dB) |
|
Output Light Power（dBm) |
≥10 dBm |
≥10dBm |
≥10dBm |
≥3dBm |
≥3dBm |
≥13dBm |
|
Fiber Type |
SM SMF-28e/ MM Fibers |
|||||
|
Output Attenuation |
Fixed Output / Step By Step Regulation/Continuous Adjustment |
|||||
|
Short-term Stability(15minutes) |
＜±0.05dB |
＜±0.01dB |
＜±0.02dB |
|||
|
Long-term Stability(8hours） |
＜±0.2dB |
＜±0.05dB |
＜±0.1dB |
|||
|
Spectrum Flatness(dB) |
- |
≤2(+GFF) |
- |
- |
||
|
Optical Fiber Connector |
FC/PC、FC/UPC、FC/APC |
|||||
|
Communication Interface |
RS232C/USB（Optional） |
|||||
|
Operation Temperature(℃) |
0～+40 |
|||||
|
Storage Temperature(℃) |
-20～+70 |
|||||
|
Supply Power |
AC 100～240V/50～60Hz/3A |
|||||
|
Dimension (L´W´H) |
330´225´93mm |
|||||
☆ Ordering Information：
|
Product Type |
Luminator Device |
Appearance |
Operating Wavelength |
Output Power (dBm) |
Light Output Connector |
|
XQ5140 |
A=ASE S=SLED |
M-Module B-Benchtop |
1060nm 1550nm |
03=3dBm 10=10dBm |
FC/PC FC/UPC FC/APC |
Example：XQ5140-A-B-1550-10-FC/APC
