Multimode Test Light Source (XQ5120)
☆ Product Description:
XQ5120 is kind of multi mode test light source that designed by OSCOM. It is uses F-P、LED、VCSEL as emission source.The light source is integrated with ATC, APC, RS232C technologies, and provided 1/2/3/4 channel bench or light source module. The representative wavelength is 850nm、1310nm、1550nmect. XQ5120is stable and reliable, easy to use, it is suitable for optical components testing.
☆ Application Fields：
· Optical Fiber Communication Test · Optical Fiber Sensing Test
· Optical Fiber Device Production Test · Light Module Production Test
· Optical Fiber Communication System Integration · Construct Automatic Test System

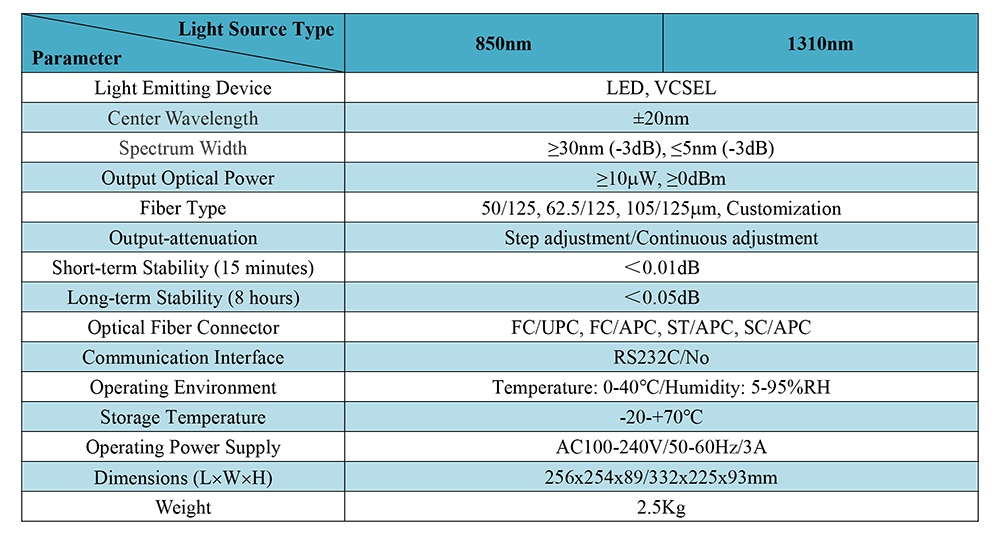

Technical Specifications:
|
Parameters \ Light Source |
1064 FP |
1310 FP |
1550 FP |
850 LED |
1310 LED |
850 VCSEL |
1550 VCSEL |
|
Luminator Device |
FP |
LED |
VCSEL |
||||
|
Center Wavelength(nm) |
±5 |
±10 |
±20 |
||||
|
Spectral Width（nm） |
±0.5 (FWHM) |
≤6 (-3dB) |
≤6 (-3dB) |
≥30 (-3dB) |
≥30 (-3dB) |
≤5 (-3dB) |
≤5 (-3dB) |
|
Output Light Power（dBm) |
≥10 dBm |
≥0 dBm |
≥0 dBm |
≥10mW |
≥10uW |
≤0 dBm |
≤0 dBm |
|
Fiber Type |
50/125、62.5/125、100/140mm MM Optical Fibers/Others |
||||||
|
Output Attenuation |
Step By Step Regulation/Continuous Adjustment |
||||||
|
Short-term Stability |
＜±0.05dB(15 minutes) |
＜±0.01dB(15minutes) |
＜±0.02dB(15minutes) |
||||
|
Long-term Stability |
＜±0.2dB(8 hours) |
＜±0.05dB(8 hours） |
＜±0.1dB(8 hours) |
||||
|
Optical Fiber Connector |
FC/PC、FC/UPC、FC/APC、ST/APC、SC/APC |
||||||
|
Communication Interface |
RS232C/USB（Optional） |
||||||
|
Operation Temperature(℃) |
0～+40 |
||||||
|
Storage Temperature(℃) |
-20～+70 |
||||||
|
Supply Power |
AC 100～240V/50～60Hz/3A |
||||||
|
Dimension (L´W´H) |
330´225´93mm |
||||||
☆ Ordering Information：
|
Product Type |
Luminator Device |
Appearance |
Channel |
Operating Wavelength |
Output Power (dBm) |
Optical Fiber Type |
Light Output Connector |
|
XQ5120 |
F=FP-LD L=LED V=VCSEL |
M-Module B-Benchtop |
1=1ch 2=2ch 3=3ch 4=4ch |
850nm 1064nm 1310nm 1550nm |
N20=-20dBm 00=0dBm 10=10dBm |
50=50/125 62=62.5/125 100=100/140 |
FC/UPC FC/APC SC/APC ST/APC |
Example：XQ5120-L-B-1-850-N20-50-FC/APC
