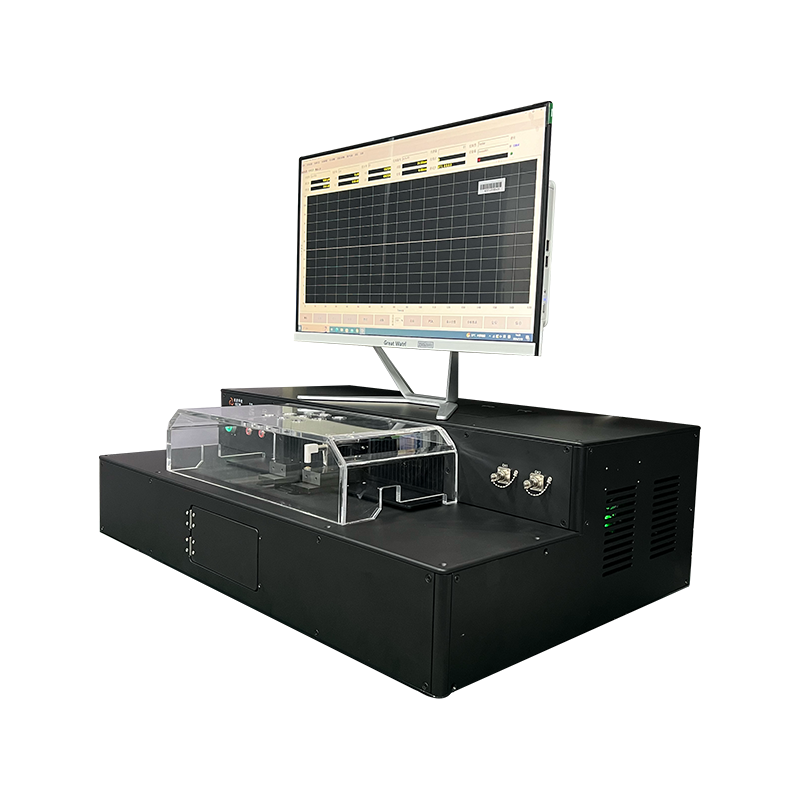

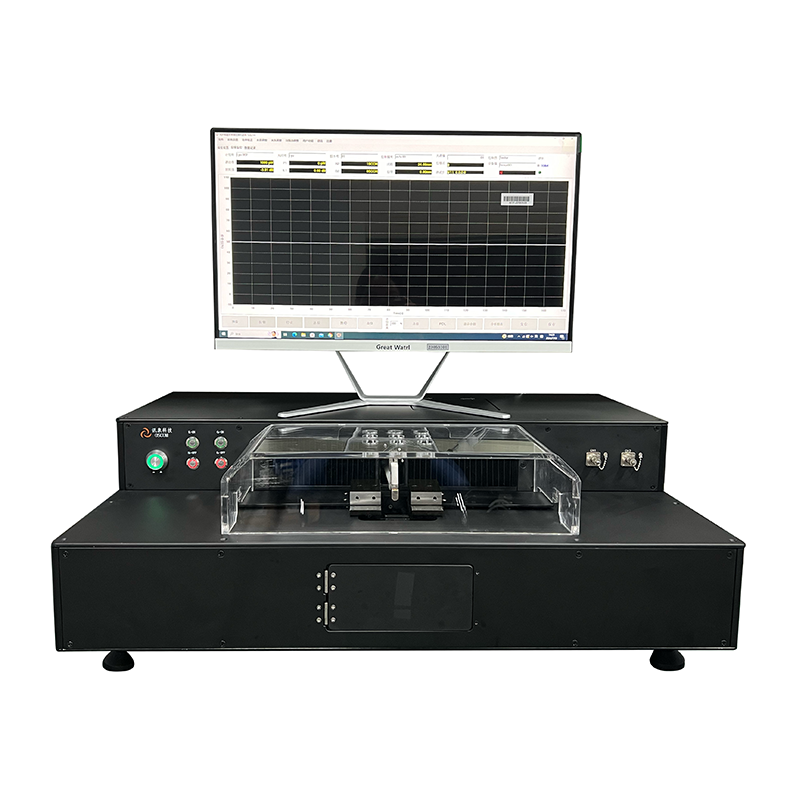

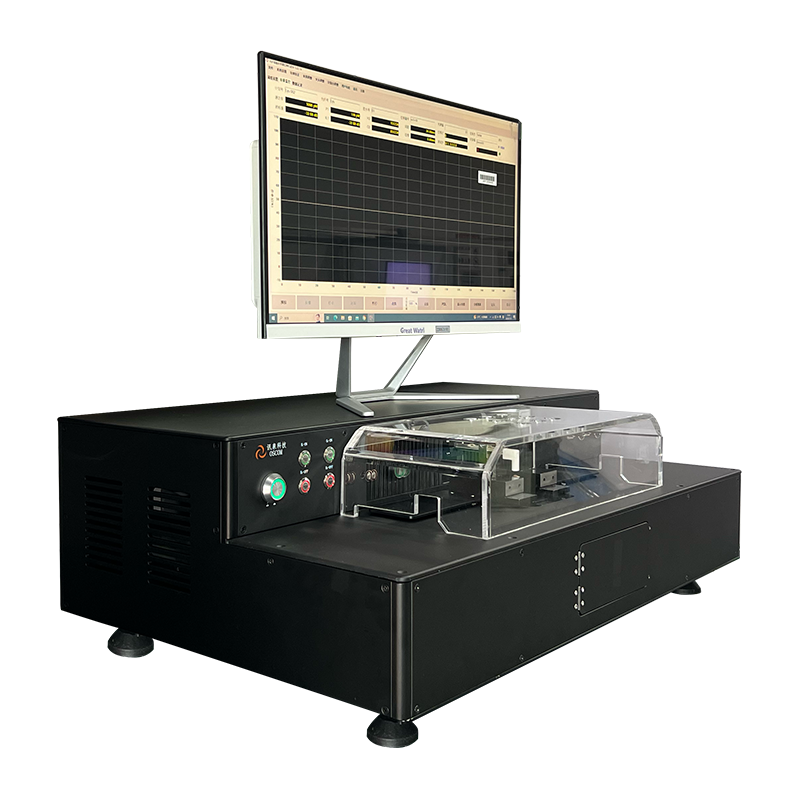

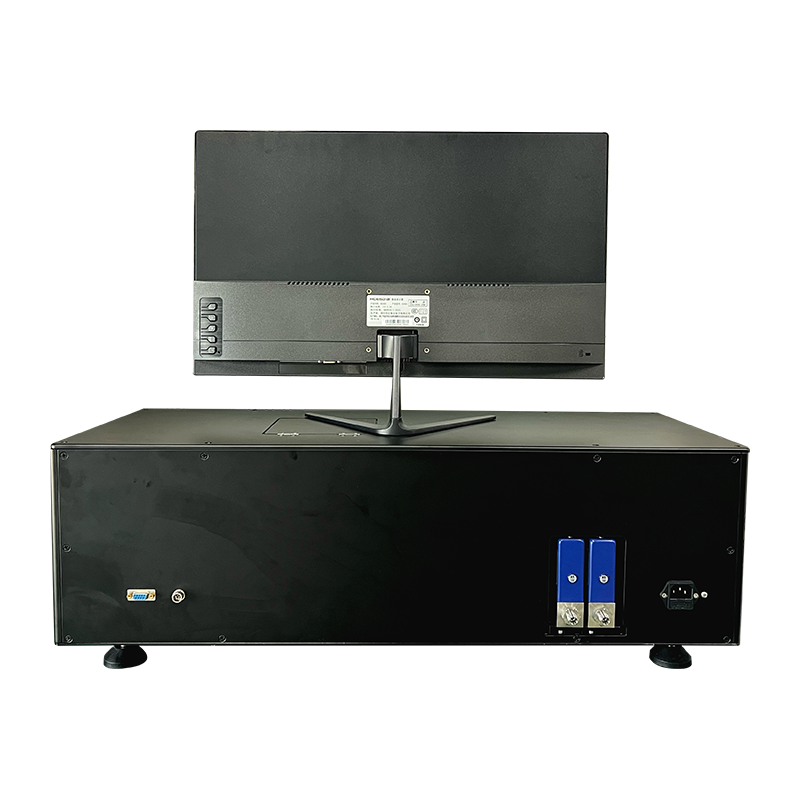

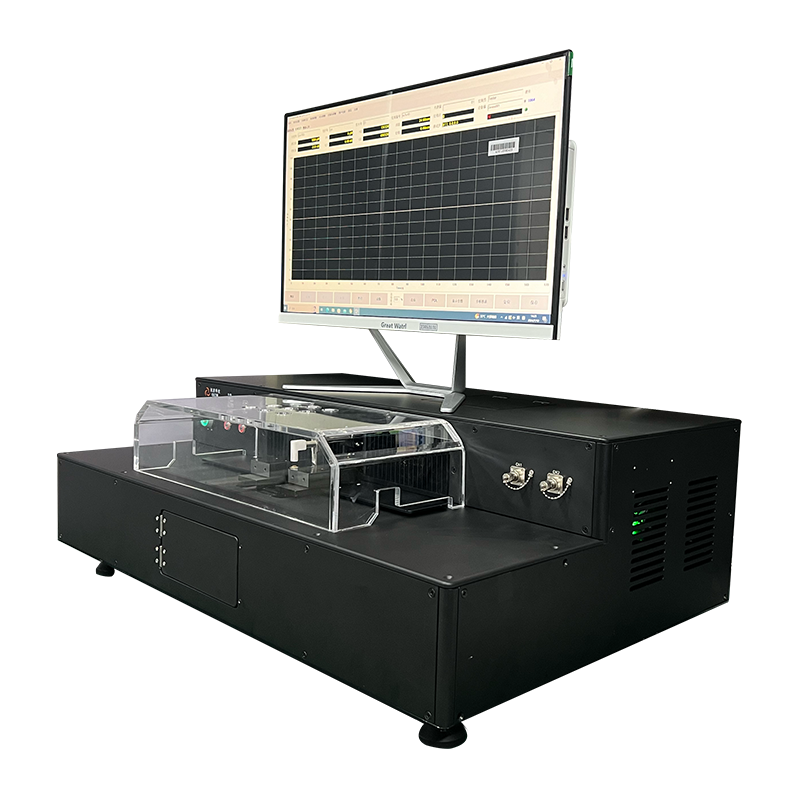

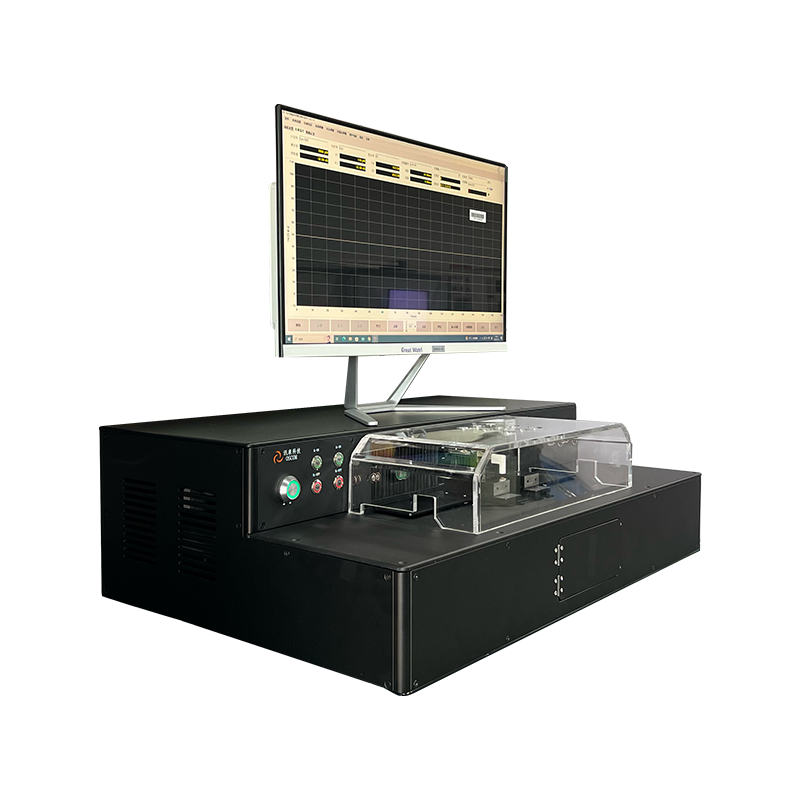

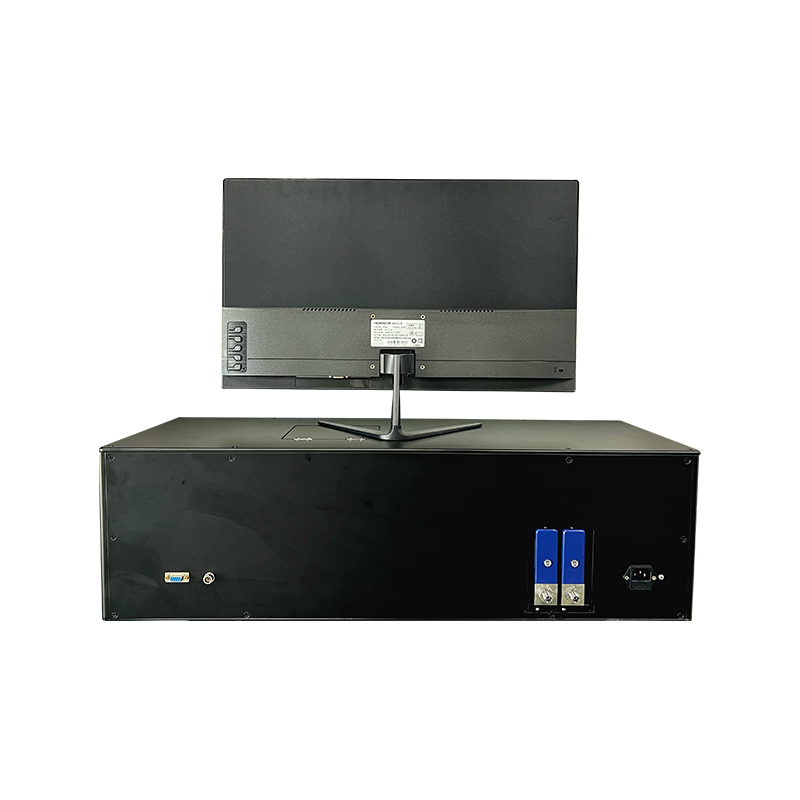

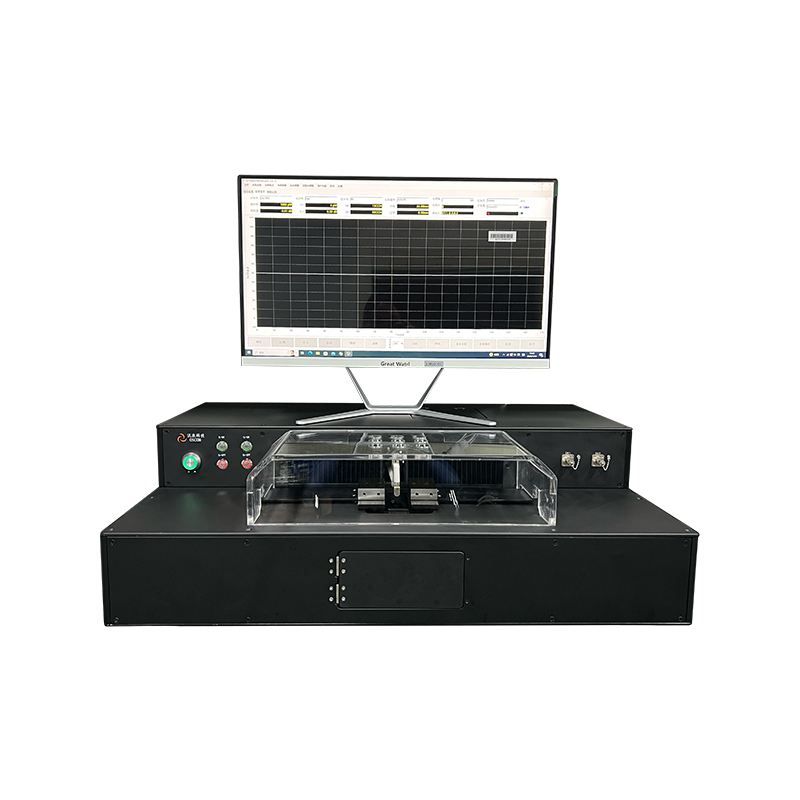

Long Travel Range Tapering Machine (XQ7170)
Product Description：
XQ7170 is mainly for producing high power (N+1)x1/Nx1 fiber combiner and other specific tapered optical fiber rod. The main feature is the extension of taper screw travel（200~500mm）, and equipped with specific fiber clamp and heater,it is very suitable for the development of high power optical fiber components. XQ7170 is stable and reliable,It is easy to use.

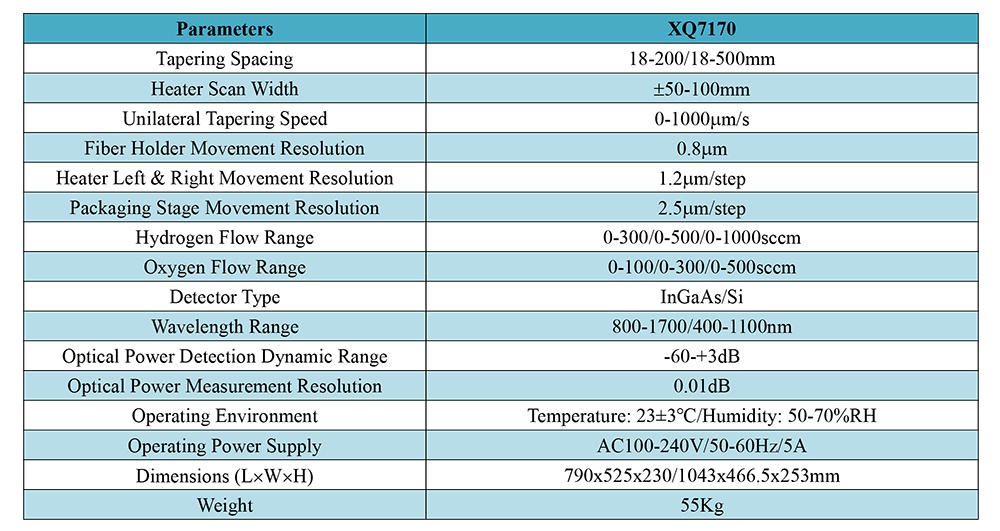

☆ Technical Specifications：
|
Parameters |
Unit |
Value |
|
Taper Length |
mm |
18~200 / 18~400 / 18~500 |
|
Scanning Width |
mm |
±50~100 |
|
Taper Speed |
mm /s |
0~1000 |
|
Taper Accuracy |
mm |
0.1/0.8 |
|
Scanning Accuracy |
mm/step |
0.02 |
|
Motion Accuracy of Packaging Stage |
mm/step |
0.02 |
|
Range of H2 Gas Flow |
sccm |
0~300 / 0~500 / 0~1000 / 0~10000 |
|
Range of O2 Gas Flow |
sccm |
0~100 / 0~200 / 0~500 / 0~1000 |
|
Photo Detector |
- |
InGaAs |
|
Wavelength Range |
nm |
800~1700 |
|
Dynamic Range of Optical Power Detection |
dB |
-60~+3 |
|
Resolution of Optical Power Detection |
dB |
0.01 |
|
Operation Environment |
- |
Temperature：23±2℃ / Humidity：50~60%RH |
|
Power Supply |
- |
AC100~240V/50~60Hz/5A |
|
Dimensions（L´W´H） |
mm |
800´550´250 |
☆ Ordering Information：
|
Product Type |
XQ7170 |
|
|
Application |
(N+1)´1/N´1 Fiber Combiner |
Optical Fiber Rod Taper |
|
Configurations |
Separated Heater |
Separated Heater Customized Fiber Holder 1 Channel PD |
