Multi-channel Optical Power Meter (XQ5230)
☆ Product Description
XQ5230 is designed for multi-channel optical power meter series, using InGaAs or Si as a optical detector, integrated the functions such as automatic range switching, splitting ratio measurement, insertion loss measurement, PDL measurement, data recording and analysis, RS232C / GPIB interface etc. XH5231 is the 4 channel optical power meter, XQ5232 is the 8 channel optical power meter, XQ5233 is the 16 channel optical power meter, cost-effective, stable and reliable, easy to use, very suitable for optical components factory production and testing and research institutes test etc.
☆ Application Scope:
· Optical Fiber Communication Test
· Multiport Splitter Production Test
· CWDM/DWDM Fiber Optic Device Production Test
· Automatic Test System Take Build

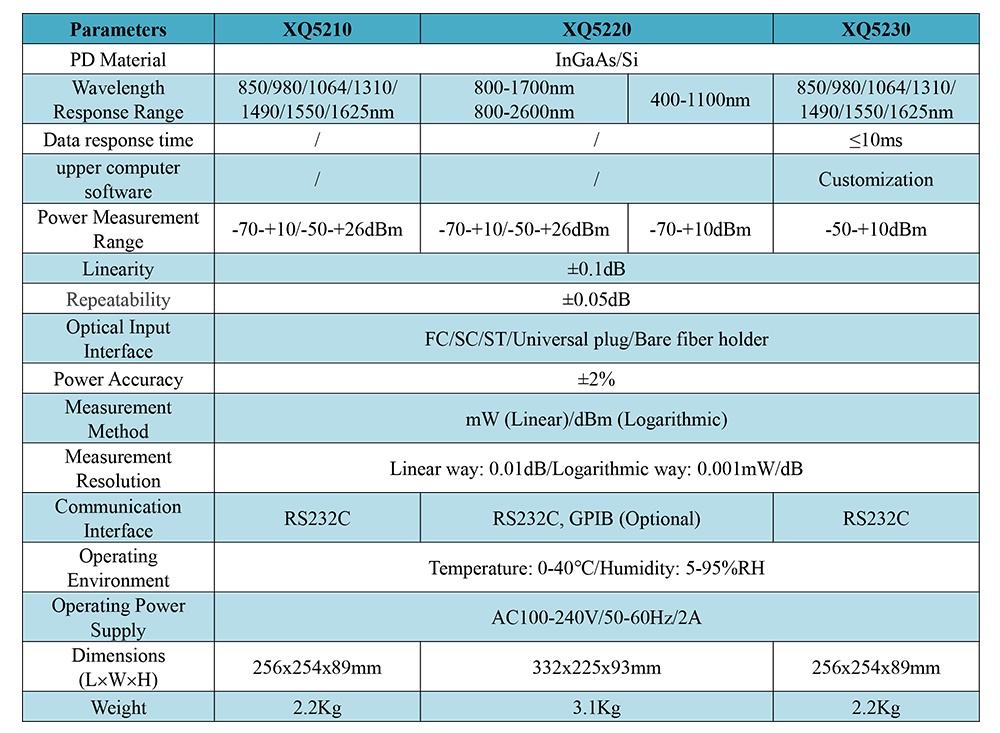

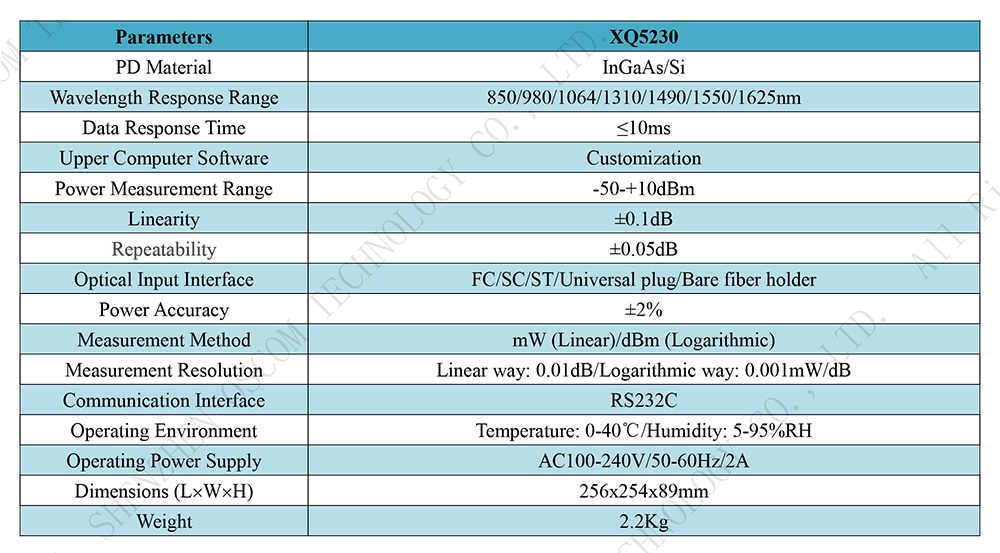

☆ Technical Specifications :
Parameter |
Unit |
Parameter Value |
PD Materials |
- |
InGaAs / Si |
Wavelength Response Range |
nm |
800~1700 / 400~1100 / 800~2600 |
Power Measurement Range |
dBm |
+10~-70 / +26~-50 |
Linearity |
dB |
±0.1 |
Linearity |
dB |
±0.05 |
Accuracy Of Power |
% |
±2% |
Measurement Channel |
- |
4/8/16 |
Light Source Input Connector |
- |
FC/SC/S/Convenient Receptacle Adapter/Bare Fiber Gripper |
Measurement Mode |
- |
mW(Linear ) / dBm(Logarithm)/ dB(Relative) |
Measurement Resolution |
mW/dB |
Linear Fashion:0.01/Logarithmic Way:0.001dB |
Communication Interface |
- |
RS-232C(Optional ) |
Work Environment |
- |
Temperature :0 ~ 40℃ / Humidity:20% ~ 80%RH |
Working Power Supply |
- |
AC 100~240V/50~60Hz/2A |
Appearance Size (L×W×H) |
mm |
390´150´450 |
☆ Ordering Information :
Meter Number |
Detector Type |
Channel |
Power Measurement Range |
Communication Interface |
Test Mode |
XH5231 |
1- InGaAs 2- Si |
4=4 CH |
1=+10~-70 2= +26~-50 |
0=No 1=RS232C |
A = FC B =Bare Fiber Clamp B=Bare Fiber Gripper |
XH5232 |
1- InGaAs 2- Si |
8=8 CH |
1=+10~-70 2= +26~-50 |
0=No 1=RS232C |
A = FC B =Bare Fiber Clamp B=Bare Fiber Gripper |
XH5233 |
1- InGaAs 2- Si |
16=16 CH |
1=+10~-70 2= +26~-50 |
0=No 1=RS232C |
A = FC B =Bare Fiber Clamp B=Bare Fiber Gripper |
Example :XH5231-1-4-1-1-A
