Adjustable Wavelength Optical Fiber Power Meter (XQ5220)
☆ Product Description:
XQ5220 is an adjustable wavelength optical fiber power meter that designed by OSCOM Technology. The power meter is used the material of InGaAs or Si light as optical detector, it can realize high speed measurement, coefficient of correction, adjustable wavelength. The optical fiber power meter is integrated the function of automatic range switching, insertion loss measurement, PDL measurement, data recording and analysis, RS232C/GPIB communication interface connector. XQ5220 optical fiber power meter is provide 1/2 channel table device, it is stable and reliable, easy to use. The optical fiber power meter is suitable for testing optical fiber components and research institutes as testing.
☆ Application:
· Optical Fiber Communication Test · Optical Fiber Sensing Test
· Optical Fiber Components Production Test · Light Module Production Test
· Optical Fiber Communication System Integration · Construct Automatic Test System

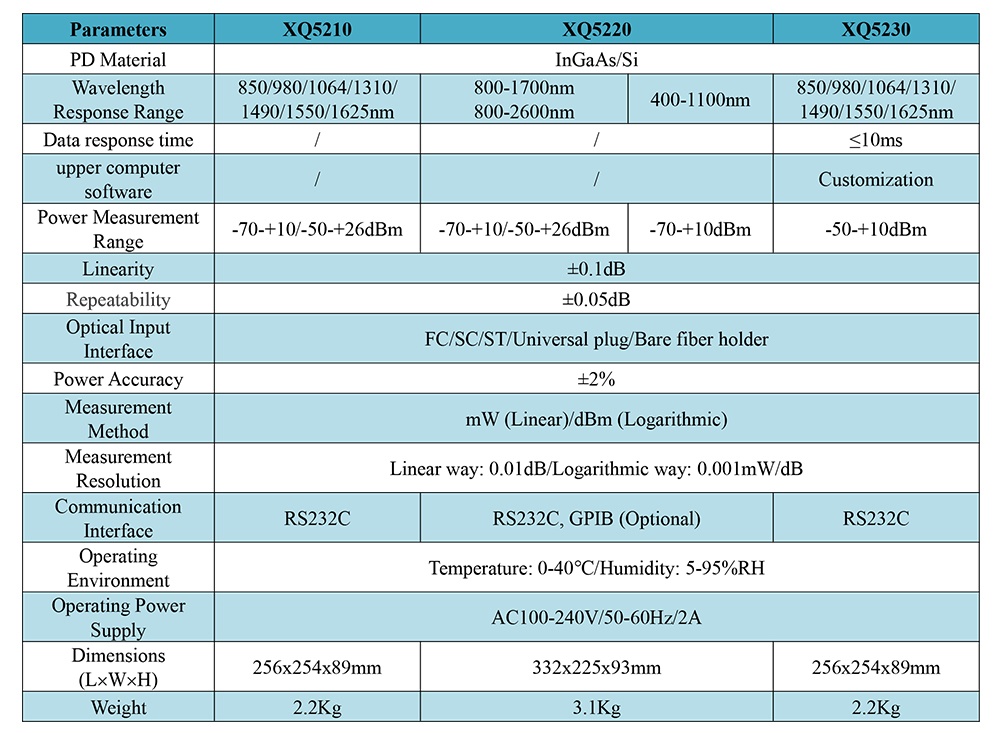

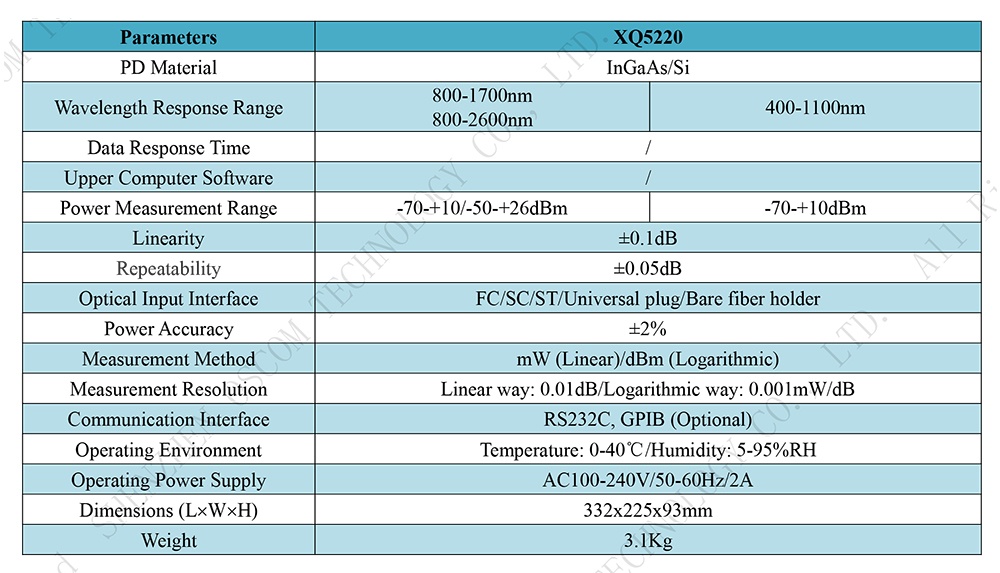

☆ Technical Specifications:
Parameters |
Unit |
Value |
PD Material |
- |
InGaAs / Si |
Wavelength Response Range |
nm |
800~1700 / 400~1100 / 800~2600 |
Power Measurement Range |
dBm |
+10~-70 / +26~-50 |
Linearity |
dB |
±0.1 |
Repeatability |
dB |
±0.05 |
Light Source Input Connector |
- |
FC/SC/ST/Convenient receptacle adaptor/Bare Fiber Clamp |
Power Accuracy |
% |
±2% |
Measurement Mode |
- |
mW(linear) / dBm(log)/ dB(opposite) |
Measurement Resolution |
mW/dB |
Linear way:0.01 / log way:0.001dB |
Communication Interface |
- |
RS-232C、GPIB(Optional) |
Work Environment |
- |
Temperature:0 ~ 40℃ / Humidity:20% ~ 80%RH |
Power Supply |
- |
AC 100~240V/50~60Hz/2A |
Dimension (L×W×H) |
mm |
330×225×93(Table Model) |
☆ Ordering Information:
Product Type |
Wavelength Range |
Channel |
Power Measurement Range |
Communication Interface |
Test Mode |
XQ5220 |
1- 800~1700nm 2- 400~1100nm 3- 800~2600nm |
1=Single Channel 2=Double Channel |
1=-70~+10dBm 2=-50~+26dBm |
1=RS232C 2=RS232C+GPIB |
A =Inner FC B =Inner bare fiber clamp C=Outside bare fiber clamp |
Example:XQ5220-1-2-1-2-A
