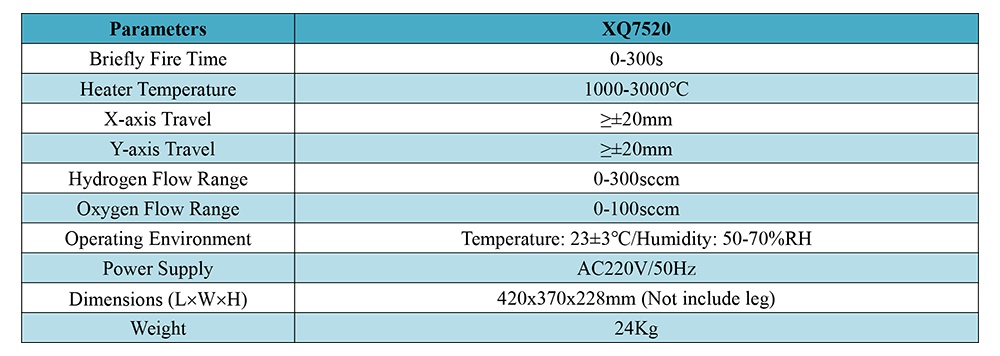

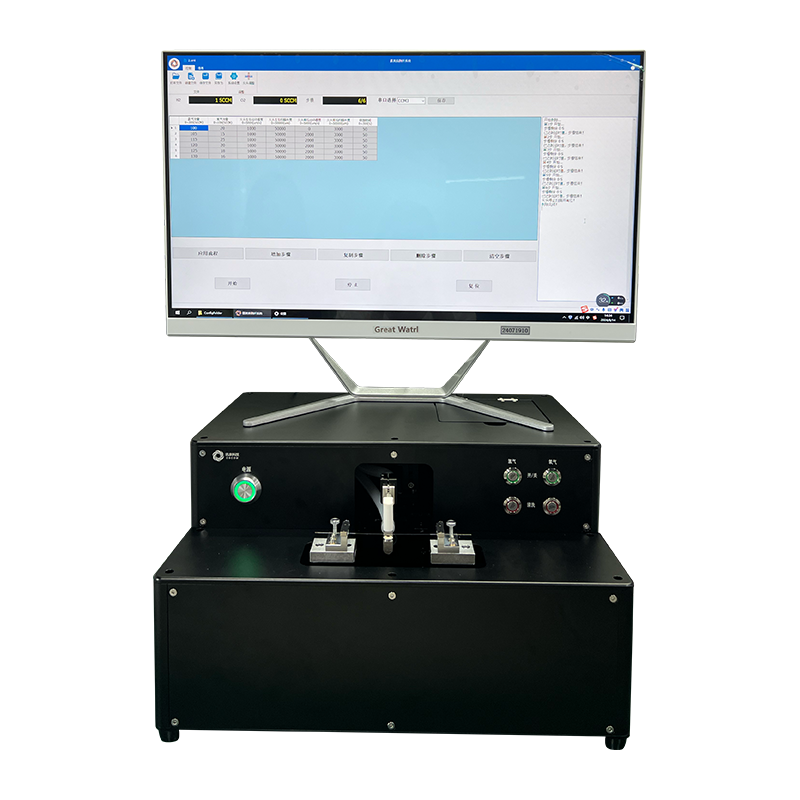

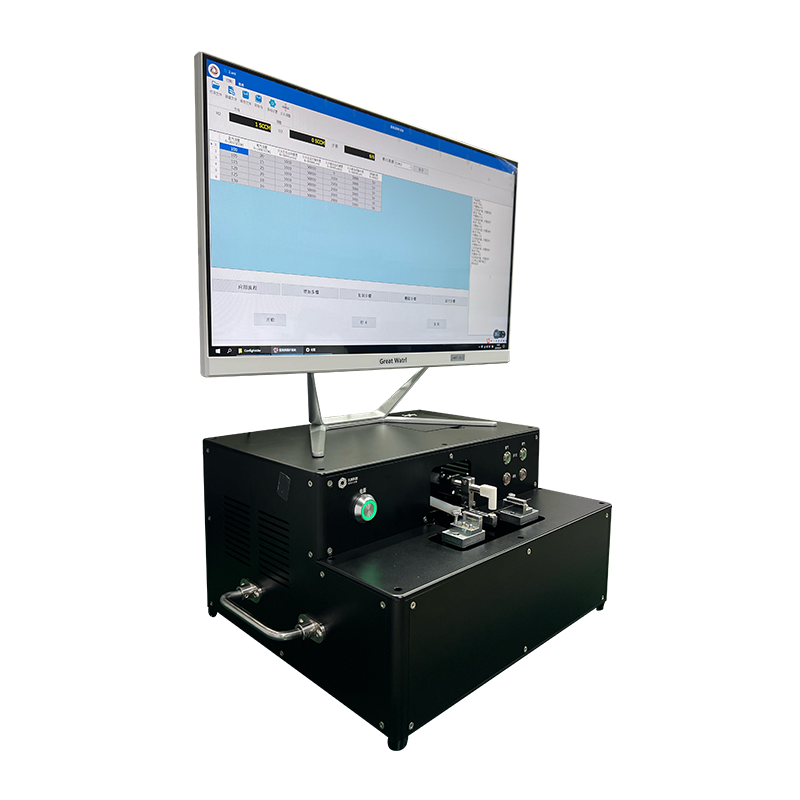

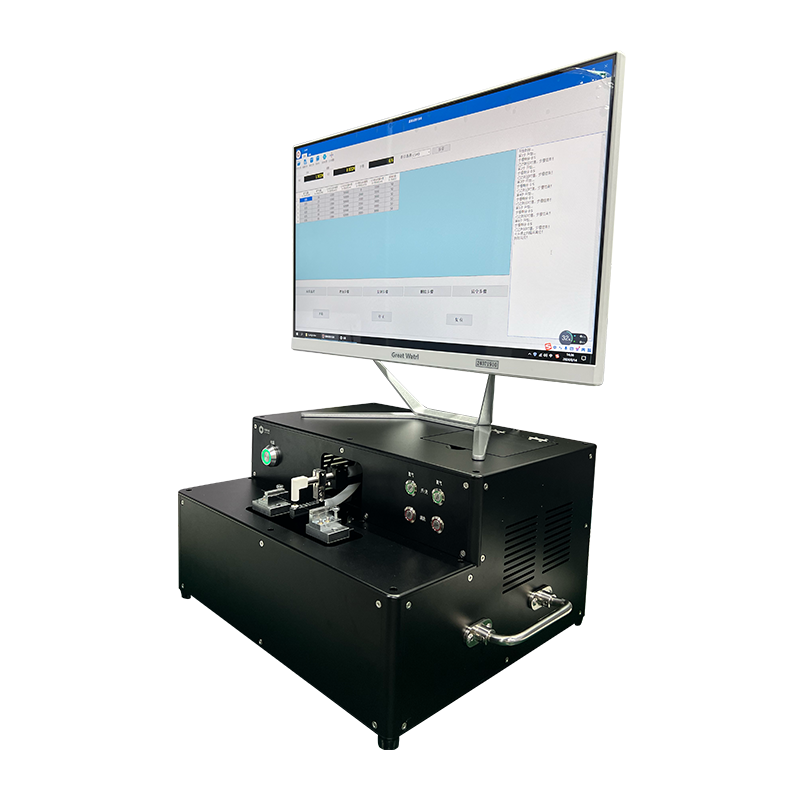

The XQ7520 is a device for stripping the coating layer of optical fibers.Its principle is to use the hydrogen and oxygen flame as a heat source,and strip the designated position of the coating layer of the optical fiber.The flame temperature can be adjusted by controlling the hydrogen flow rate.Flame two dimensional electric adjustment plus one dimensional manual adjustment:X axis travel ≥±20mm;Y-axis travel ≥±20mm.The software can be adjusted:flame ablation time,XY axis moving rate,moving distance and so on.The XQ7520 oxyhydrogen flame stripper can quickly heat and melt the coating layer of the fiber,to achieve fast,uniform,efficient stripping of the fiber.
