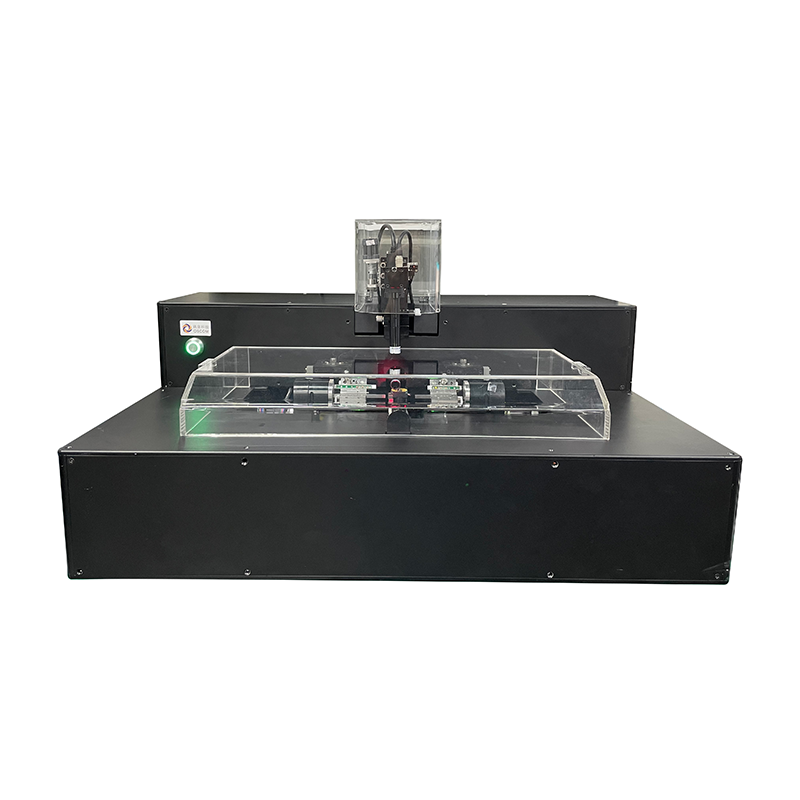

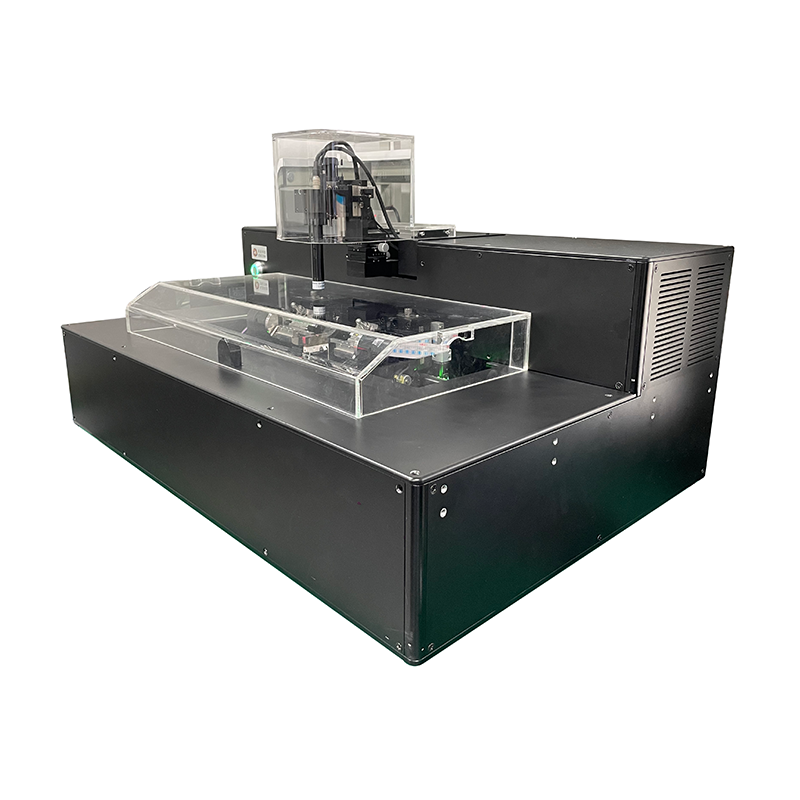

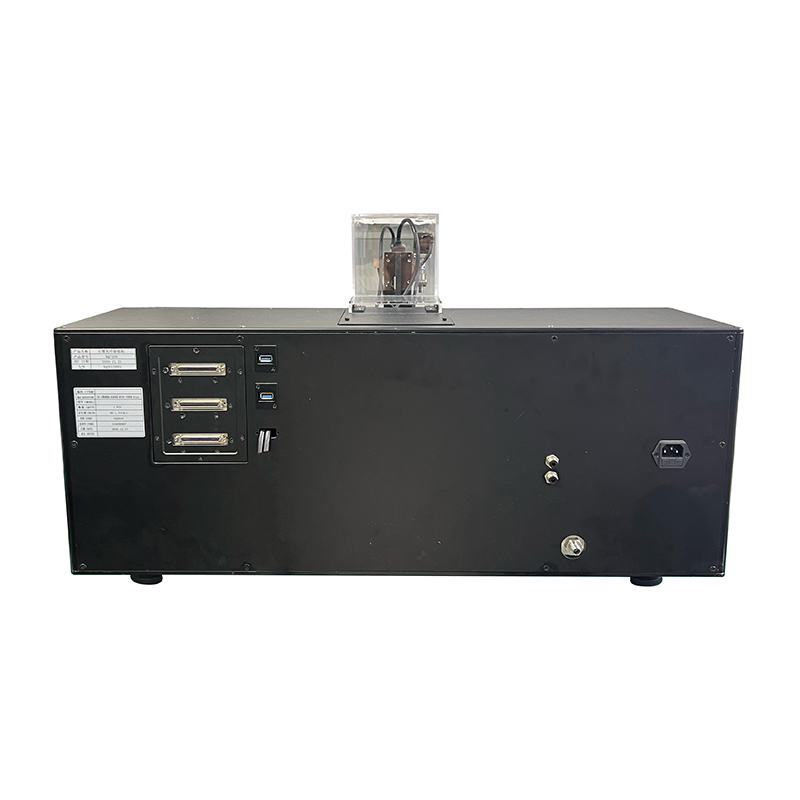

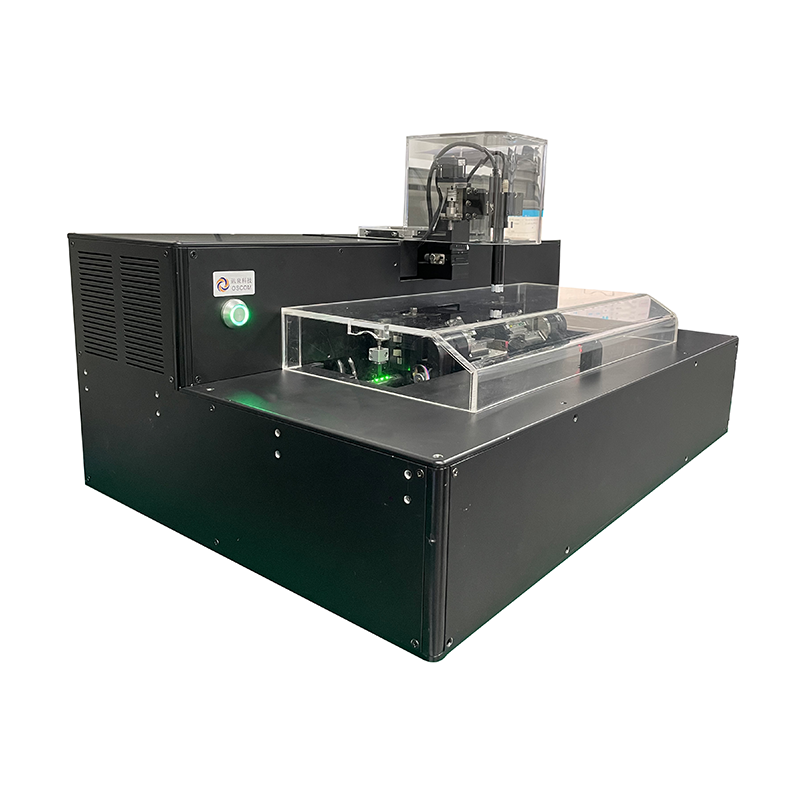

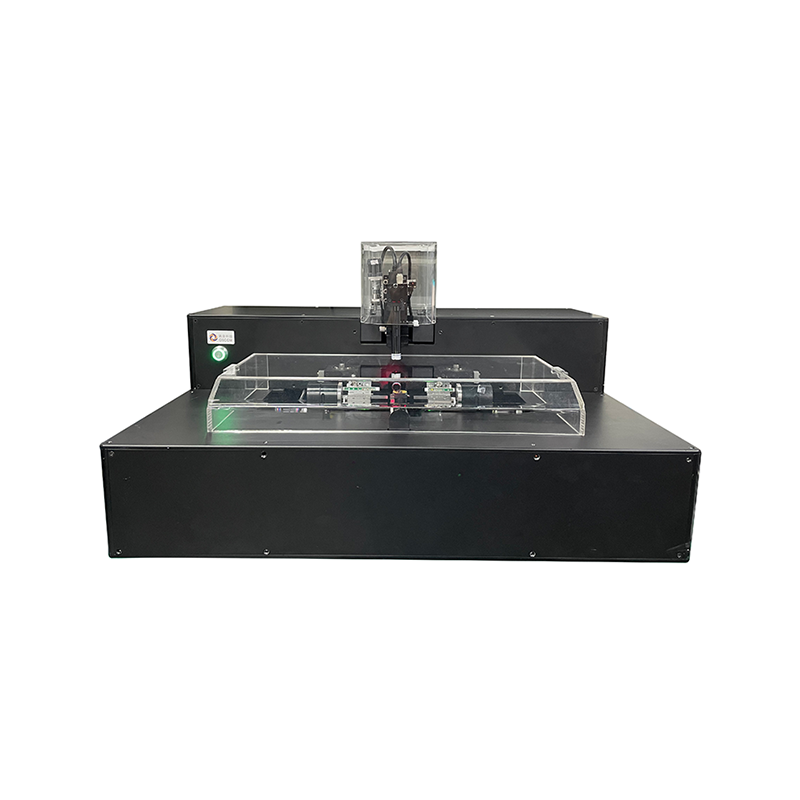

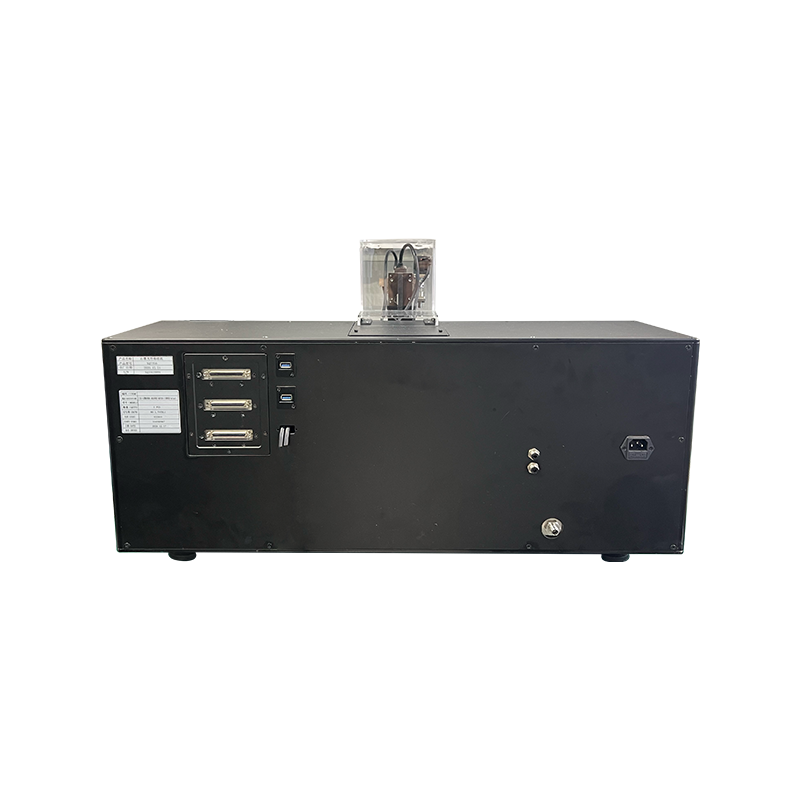

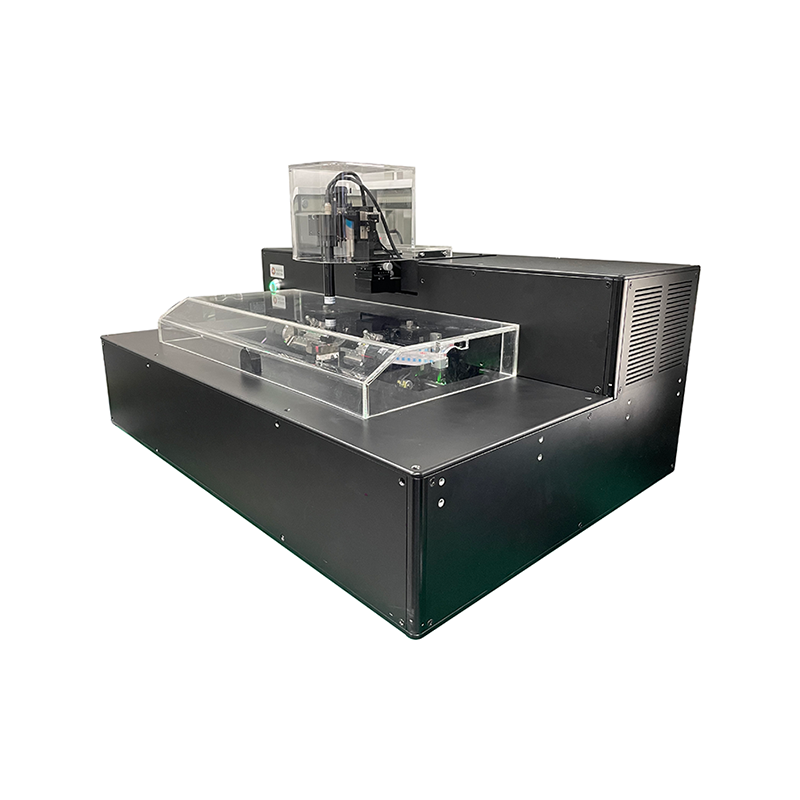

XQ7190B is a graphite fiber splicer with U-shaped heated graphite filament as heat source which is designed independently by OSCOM Technology.It can splicing low melting point fiber,quartz fiber,special fiber,and other products.The XQ7190B measure the position and distance of the fiber with a high-definition camera,and the left and right holders use a precision six-dimensional electric displacement adjustment table,which can quickly and automatically complete the angle alignment and end face alignment.The operation is simple and the splicer can replace varieties of fiber holders and graphite heaters to meet the needs of splicing fiber of different core diameter.
