Integrated Fiber Combiner Tapering Workstation (XQ71A0)
☆ Product Description：

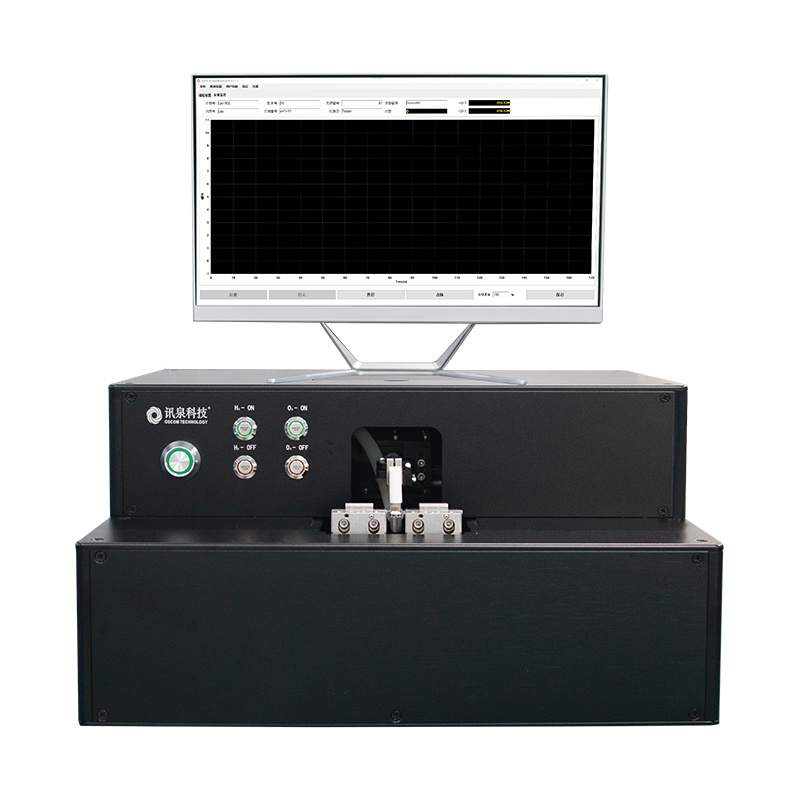

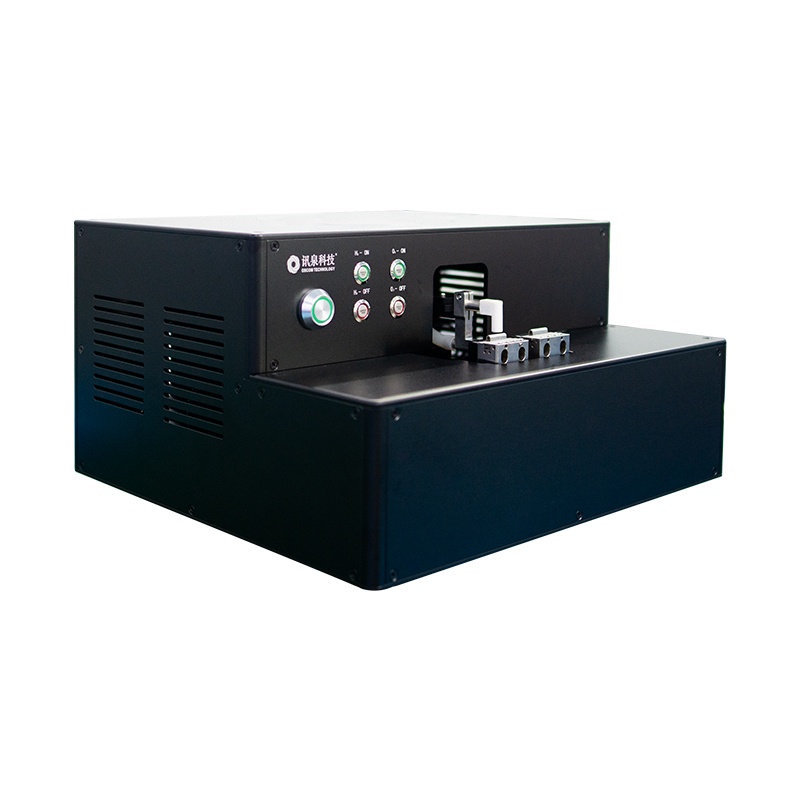

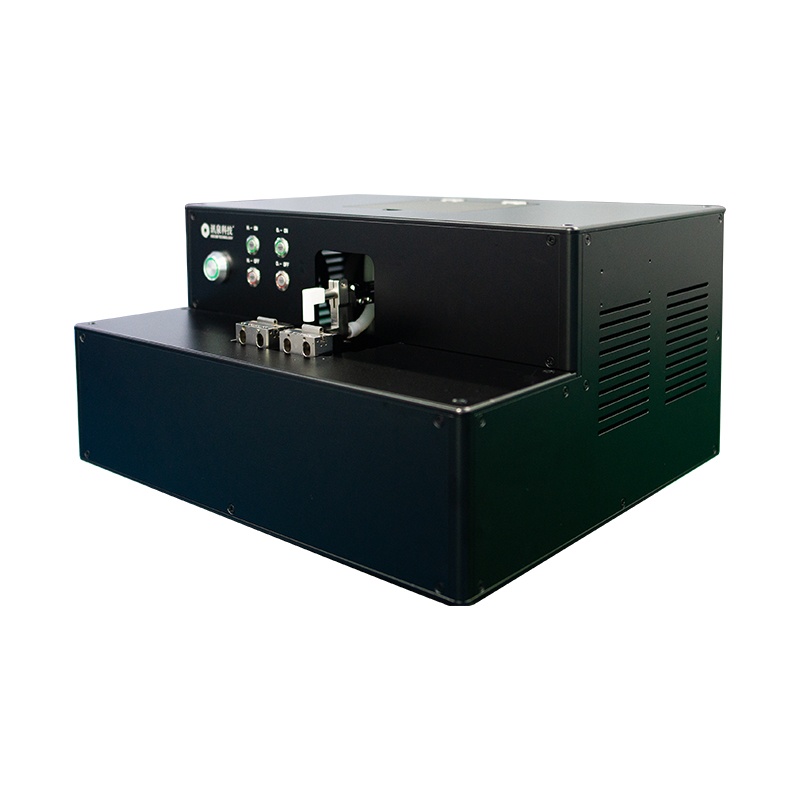

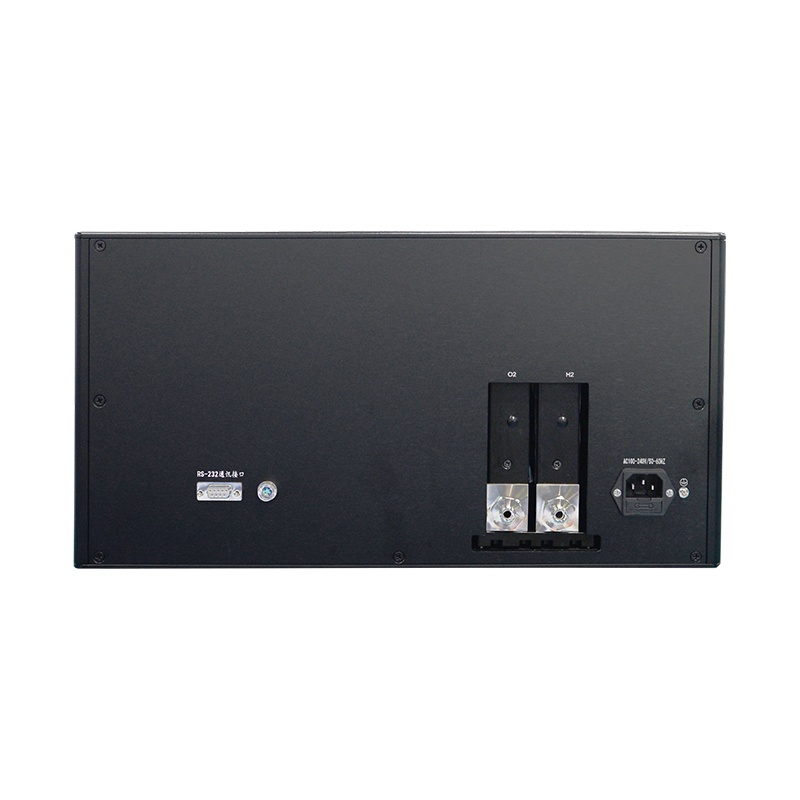

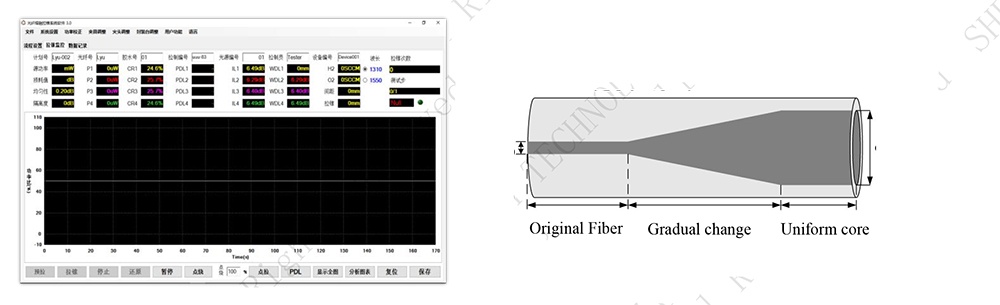

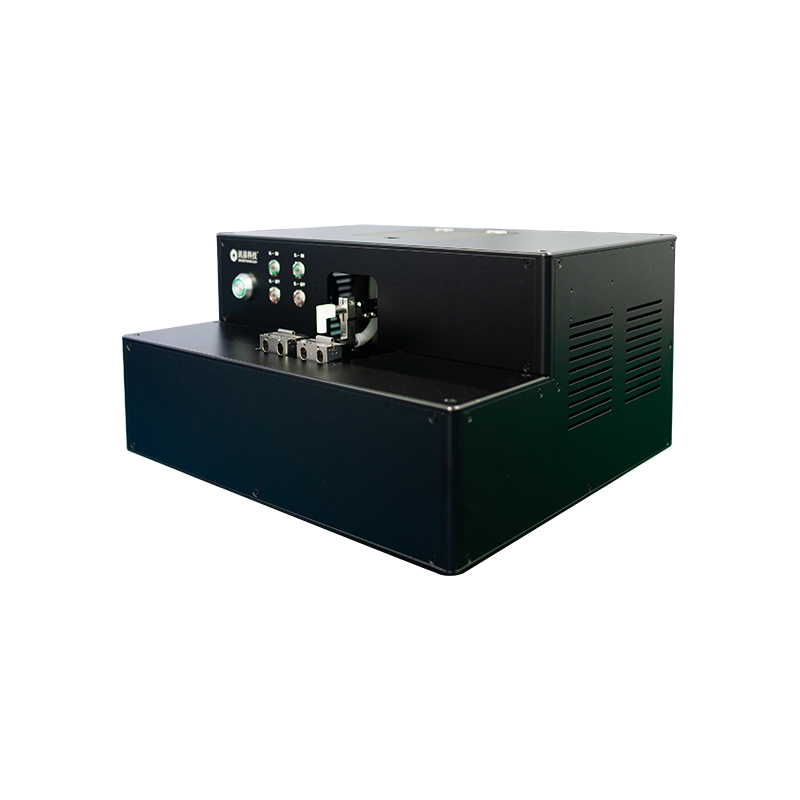

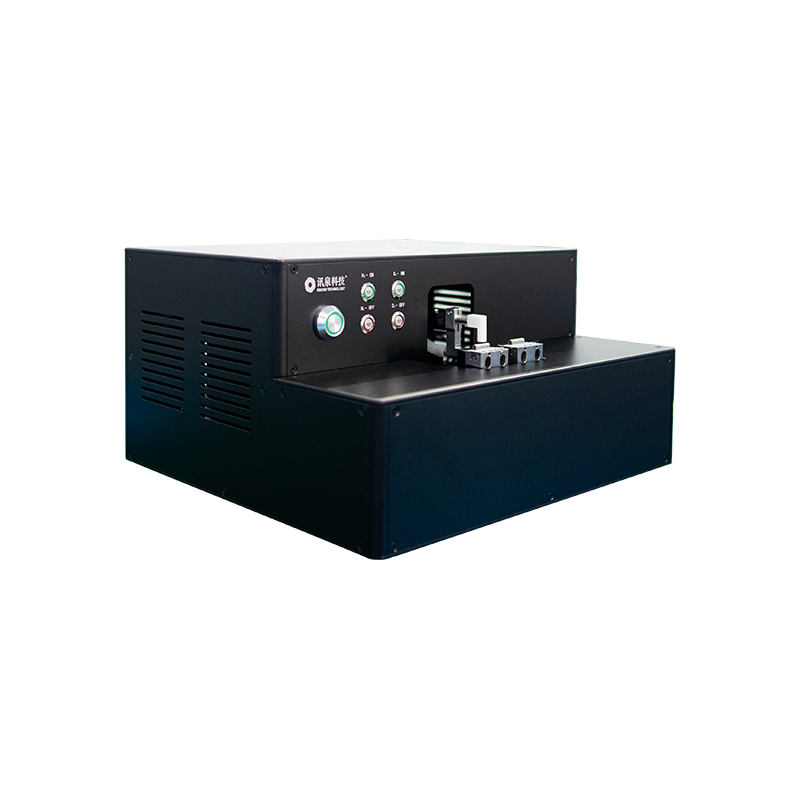

XQ71A0 is integrated with many functions of OSCOM tapering machine, the fiber combiner tapering machine is consist of hydrogen with oxygen flame and graphite heating. The machine can satisfy a variety of products research and development, including: optical fiber coupler, WDM, PM optical fiber coupler, optical fiber combiner, PM optical fiber combiner, high power pump fiber combiner, micro-nanofiber, optical fiber beam expansion, optical glass rod tapering ect. XQ71A0 is rich in functions，including the extension of taper length 200mm. This fiber combiner tapering machine with the design of unilateral tapering/reverse tapering/same direction tapering, accelerated tapering or decelerated tapering, it is with high resolution measuring CCD microscope and in-line tension test. XQ71A0 is stable and reliable, easy to use, and all the functions of the machine can be configured according to requirement.
Technical Specifications:
|
Parameters |
Unit |
Value |
|
Taper Length |
mm |
18~200 |
|
Scanning Width |
mm |
±50 |
|
Taper Speed |
mm/s |
0~1000 |
|
Taper Accuracy |
mm |
0.1 |
|
Scanning Accuracy |
mm/step |
0.02 |
|
Motion Accuracy of Packaging Stage |
mm/step |
0.02 |
|
Range of H2 Gas Flow |
sccm |
0~1000 |
|
Range of O2 Gas Flow |
sccm |
0~500 |
|
Graphite Parts |
Φ |
1.6 |
|
Tension Mode |
- |
Unilateral/Reverse/Same Direction Tapering |
|
Photo Detector |
- |
InGaAs |
|
Wavelength Range |
nm |
400~1700 |
|
Dynamic Range of Optical Power Detection |
dBm |
-60~+3 |
|
Resolution of Optical Power Detection |
dB |
0.01 |
|
Operation Environment |
- |
Temperature：23±2℃ / Humidity：50~60%RH |
|
Power Supply |
- |
AC100~240V/50~60Hz/5A |
|
Dimensions（L´W´H） |
mm |
800´550´250 |
