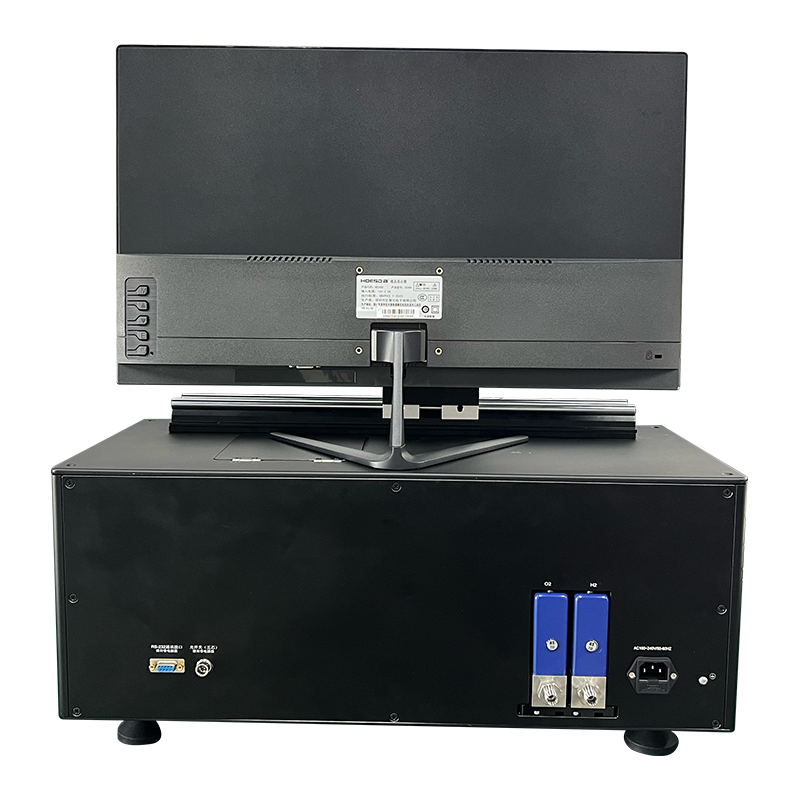

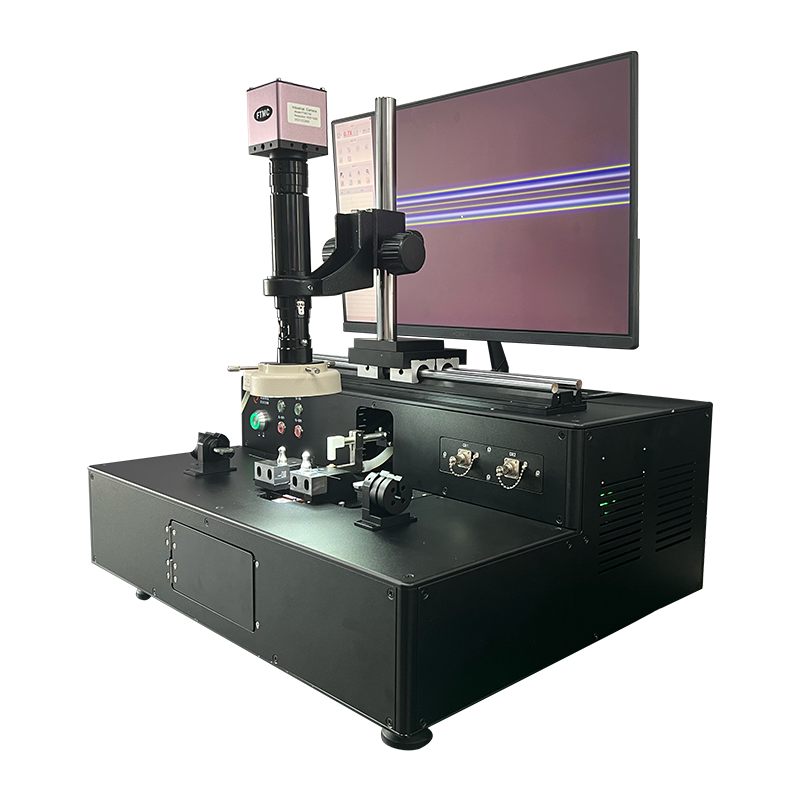

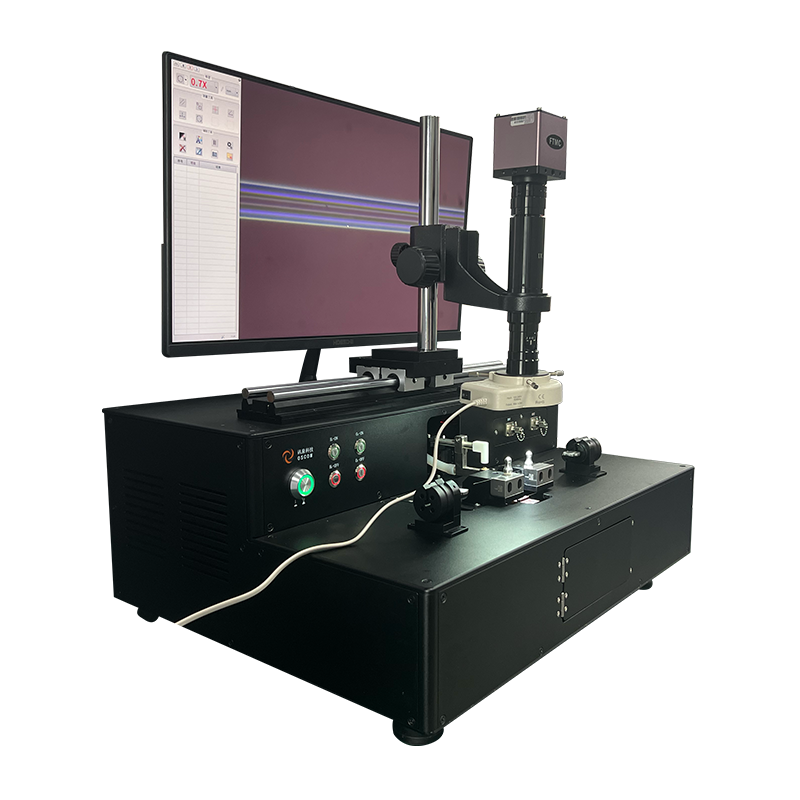

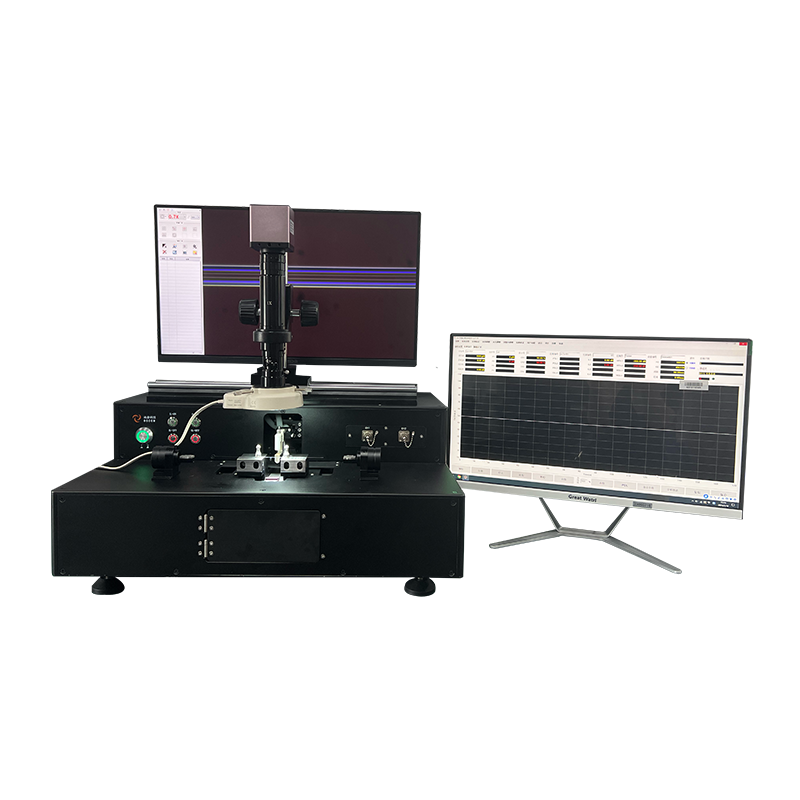

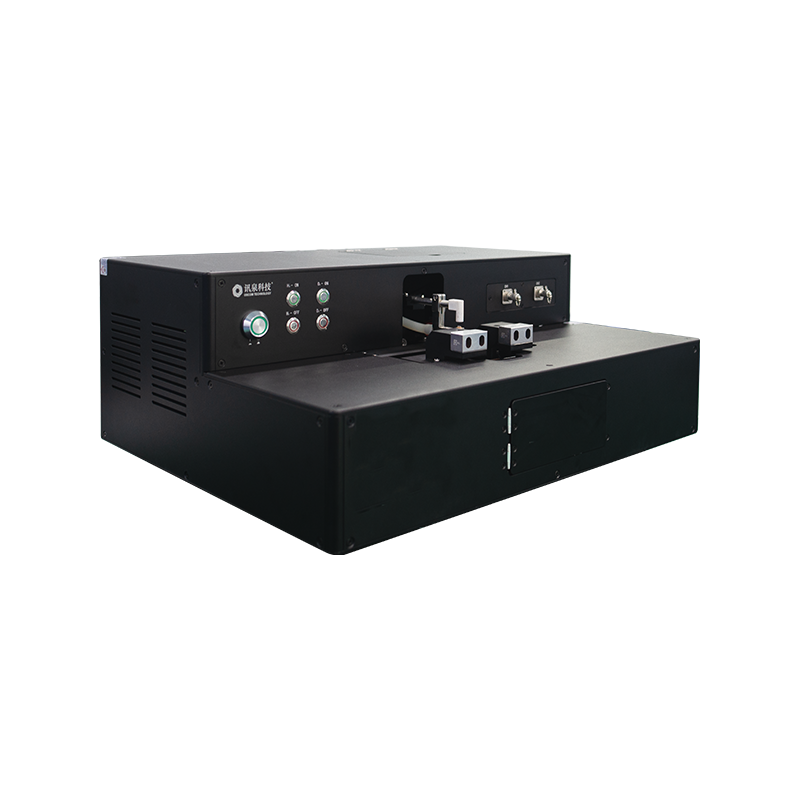

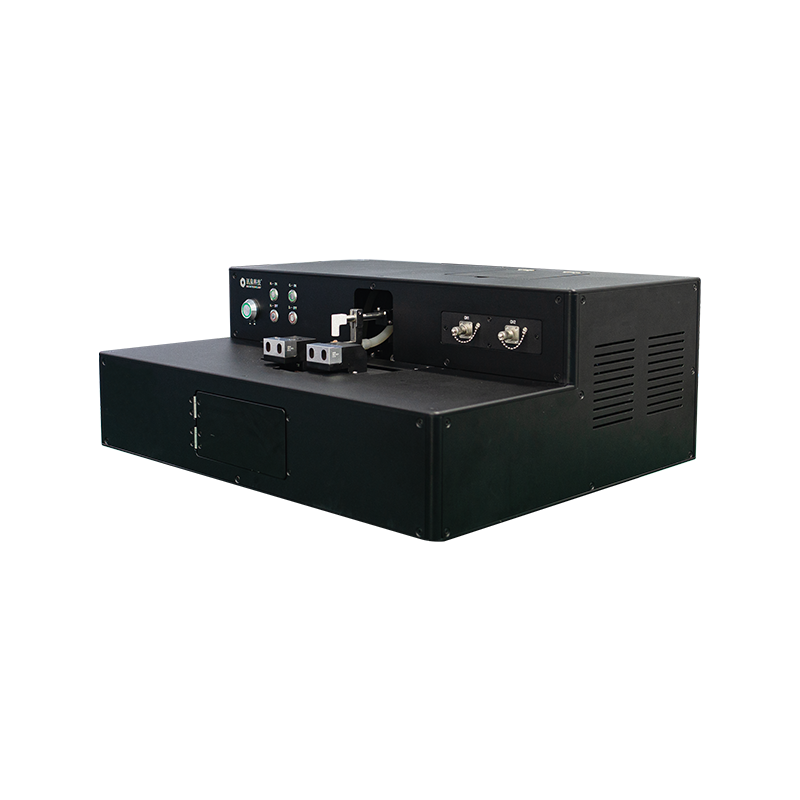

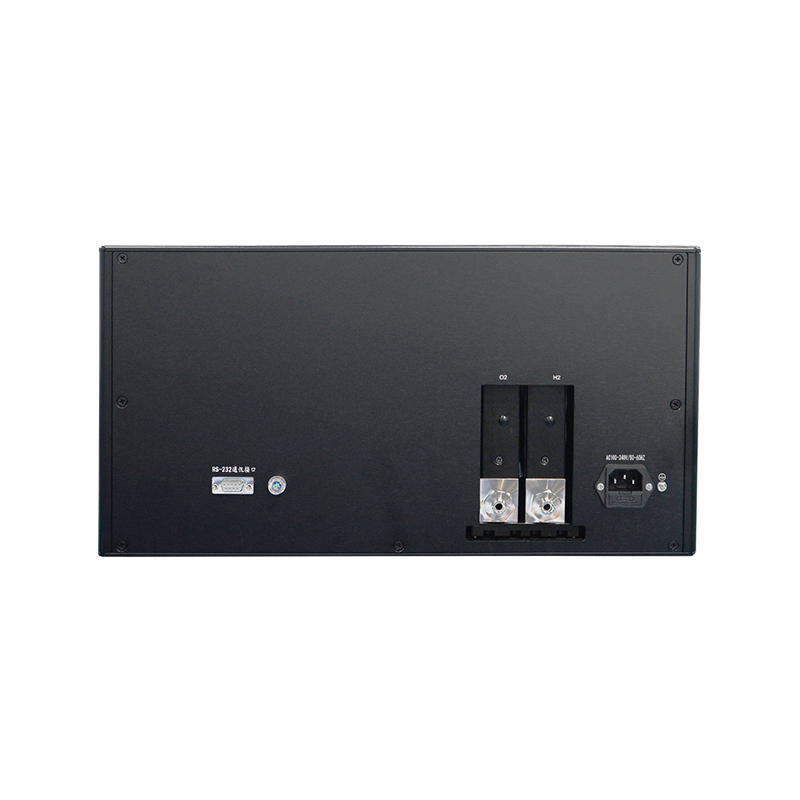

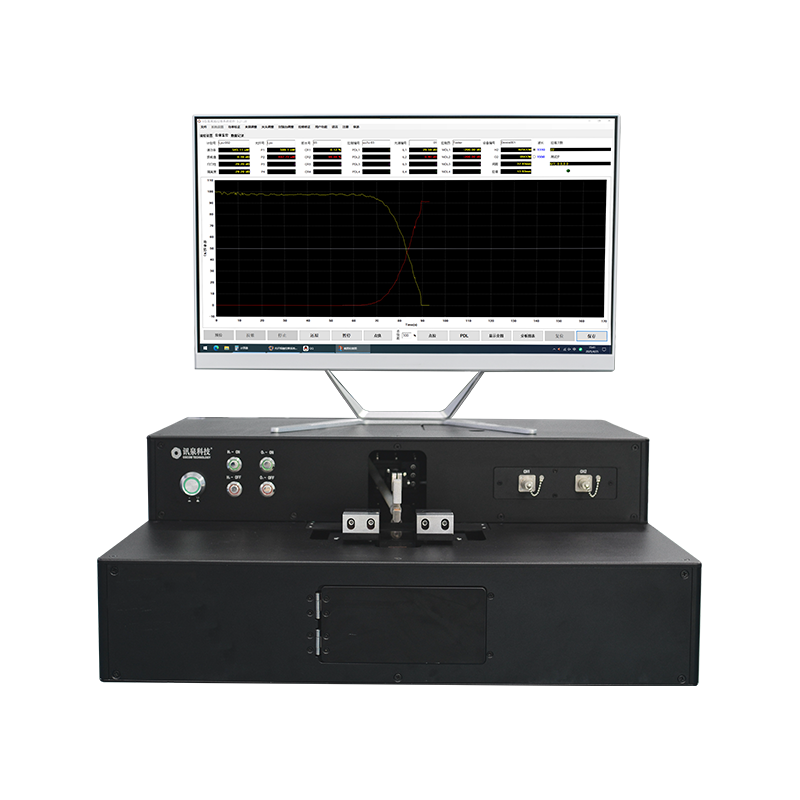

PM Fiber Coupler Tapering System (XQ7130)

XQ7130 is designed for making the PM 1x2/2x2/1x3/3x3/WDM fiber coupler or WDM components, include kinds of 1x2/2x2/1x3/3x3/WDM PM components with all coupling ratio. XQ7130 is stable and reliable, easy to use, normal output of the 1x2 PM fiber coupler is


   Description:

     XQ7130 is designed for making the PM 1x2/2x2/1x3/3x3/WDM fiber coupler or WDM components, include kinds of 1x2/2x2/1x3/3x3/WDM PM components with all coupling ratio. XQ7130 is stable and reliable, easy to use, normal output of the 1´2 PM fiber coupler is ≥15PCS/8hours/skilled operator.

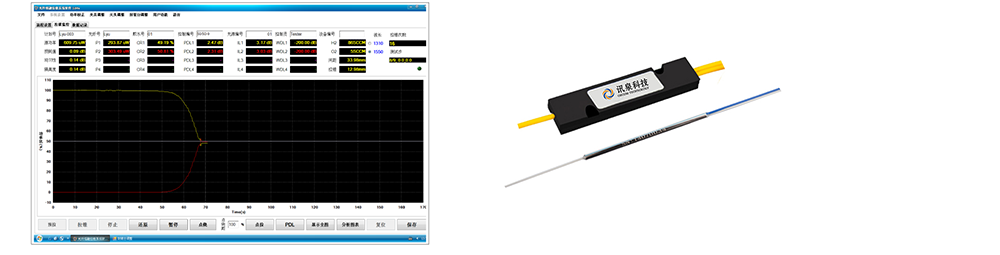

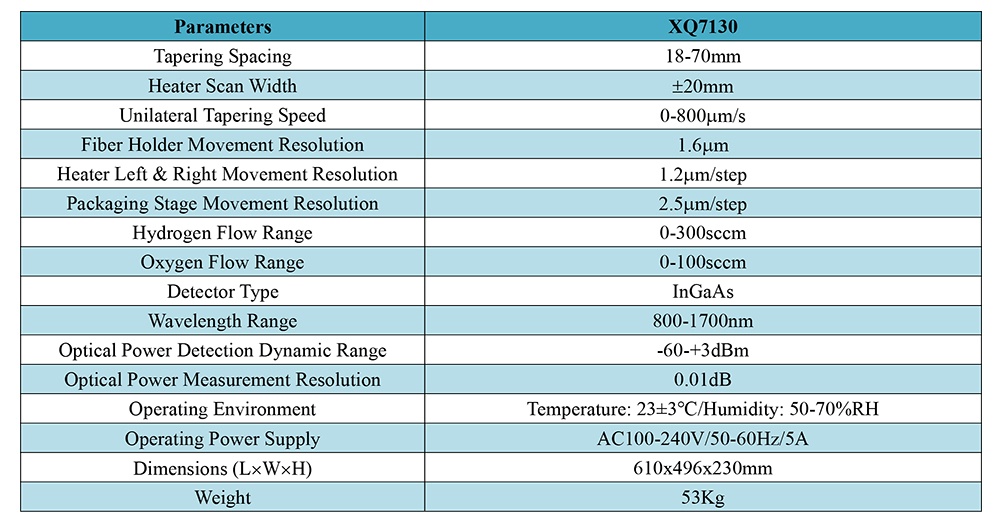

Technical Specifications:

Parameters

Units

Values

Taper length

mm

18~60

Scanning width

mm

±15

Taper speed

mm/s

0~800

Taper accuracy

mm

0.8

Scanning accuracy

mm/step

0.02

Motion accuracy of packaging stage

mm/step

0.02

Range of H2 gas flow

sccm

0~300

Range of O2 gas flow

sccm

0~100

Photo detector

-

InGaAs

Wavelength

nm

800~1700

Dynamic range of optical power detection

dBm

-60~+3

Resolution of optical power detection

dB

0.01

Operation environment

-

Temperature 23±2 /  Humidity 50~60%RH

Power supply

-

AC100~240V/50~60Hz/5A

DimensionsL´W´H

mm

610´496´270
