PER Test Instrument (XQ5700)
☆ Product Description
XQ5700 is an automatic extinction ratio test instrument that designed by OSCOM Technology. The test instrument used as the application of polarization alignment, such as linearly polarized light is coupled into polarization maintaining optical fiber. XQ5710 is manual extinction ratio test instrument, XQ5720 is automatic extinction ratio test instrument. XQ5700 extinction ratio test instrument is stable and reliable, easy to use, it is suitable for the application of research polarization maintaining optical fiber components.
☆ Applications：
· Polarization Maintaining Alignment
· Polarization Maintaining Optical Fiber Components Extinction Ratio Measurement

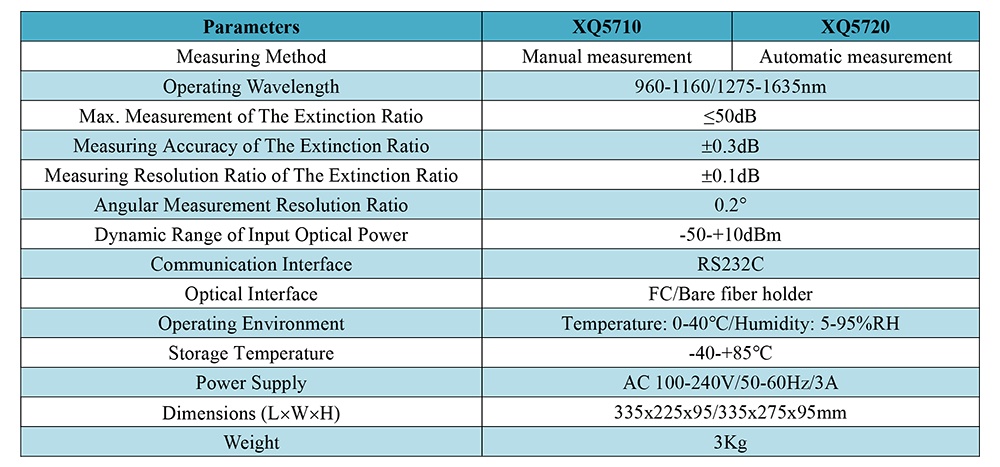

☆ Technical Specifications：
|
Parameter |
Extinction Ratio Test Instrument |
|
Wavelength (nm) |
900~1100 / 1275~1635 |
|
Max Measured Extinction Ratio（dB） |
³50 |
|
Extinction Ratio Measurement Accuracy（dB) |
±1 |
|
Extinction Ratio Measurement Resolution（dB) |
±0.1 |
|
Input Light Power Dynamic Range（dBm） |
-50~+10 |
|
Communication Interface |
RS232C |
|
Light Connector |
FC/Bare Fiber Clamp |
|
Operating Temperature(℃) |
-5~+70 |
|
Storage Temperature(℃) |
-40~+85 |
|
Operating Voltage |
AC 100～240V/50～60Hz/3A (XQ5610) |
|
Dimensions (L´W´H)（mm） |
330´225´93(Table Model) |
☆ Ordering Information：
|
Product Type |
Appearance |
Working Wavelength |
Light Output Connector |
|
XQ5710 XQ5720 |
B-Table Model |
1= 900~1100 nm 2=1275-1635 nm |
1=FC 2=Bare Fiber Clamp |
Example：XQ5720-B-2-1
