Fiber Component Manufacturing & Test Platform

Optical Fiber Components Manufacturing Test Platform (XQ5800)

XQ5800 is an optical fiber components manufacturing test platform that designed by OSCOM Technology. The test platform is used the material of InGaAs or Si light as optical detector. It is integrated automatic range switch, optical fiber switch, coupling

XQ5800是讯泉设计的光学器件制造测试平台系列,采用InGaAsSi材料作为光探测器,集成了自动量程切换、光开关、分光比测量、插损测量、PDL测量、数据记录与分析、RS232C通讯接口等功能。XQ5810为讯泉4通道测试平台,XQ5820为讯泉8通道测试平台,性价比高,稳定可靠,简单易用,非常适合光学器件工厂生产测试和科研单位测试等应用。

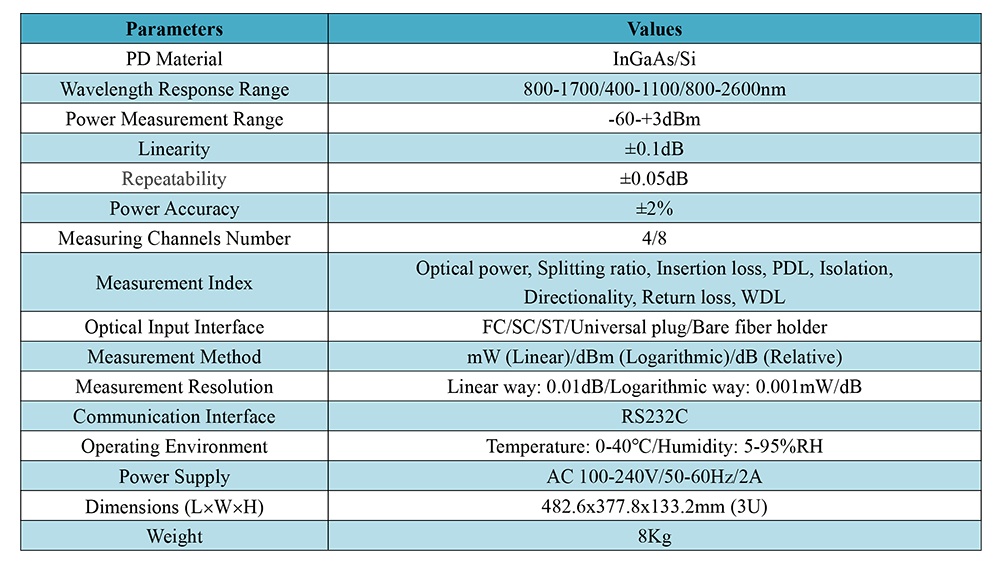

☆ Technical Specifications

Parameters

Unit

Value

PD Material

-

InGaAs / Si

Wavelength Response Range

nm

8001700 / 4001100 / 8002600

Power Measurement Range

dBm

+10-70 / +26-50

Linearity

dB

±0.1

Repeatability

dB

±0.05

Power Accuracy

%

±2%

Number of Measuring Channels

-

4/8

Measurement Index

-

Luminous powerCoupling ratioInsertion lossPDLIsolationDirectionalReturn lossWDL

Light Source Input Connector

-

FC/SC/ST/Convenient receptacle adaptor/Bare Fiber Clamp

Measurement Way

-

mW(linear) / dBmlog/ dBopposite

Measurement Resolution

mW/dB

Linear way0.01 / log way0.001dB

Communication Interface

-

RS-232COptional

Work Environment

-

Temperature40 / Humidity20% 80%RH

Work Power

-

AC 100240V/5060Hz/2A

Dimension (L×W×H)

mm

390´150´450


☆ Ordering Information

Product Type

Detector

Channel

Power Measurement Range

Communication Interface

Measurement Way

XQ5810

1- InGaAs

2- Si

4=4 Channel

1=+10-70

2= +26-50

0=Non

1=RS232C

A = FC

B =Bare fiber clamp

XQ5820

1- InGaAs

2- Si

8=8 Channel

1=+10-70

2= +26-50

0=Non

1=RS232C

A = FC

B =Bare fiber clamp

ExampleXQ5810-1-4-1-1-A
