Optical Fiber Switch (XQ5500)
☆ Production Description:
XQ5500 is a machanical optical fiber switch that designed by OSCOM Technology, including all kinds of specifications: 1x2，1x3，1x4，1x8，1x12, XQ5510 is Module optical switch, XQ5520 is table model optical switch, XQ5530 is 1U rack optical fiber switch, XQ5540 is Network protection optical fiber switch. XQ5500 series of optical fiber switch is stable and reliable, it is easy to use. The optical fiber switch is good for optics test, optical network protection and other applications.
☆ Application Fields：
· Optical Fiber Communication Test · Optical Fiber Sensing Test
· Optical Fiber Components Production Test · Light Module Production Test
· Optical Fiber Communication System Protection · Construct Automatic Test System

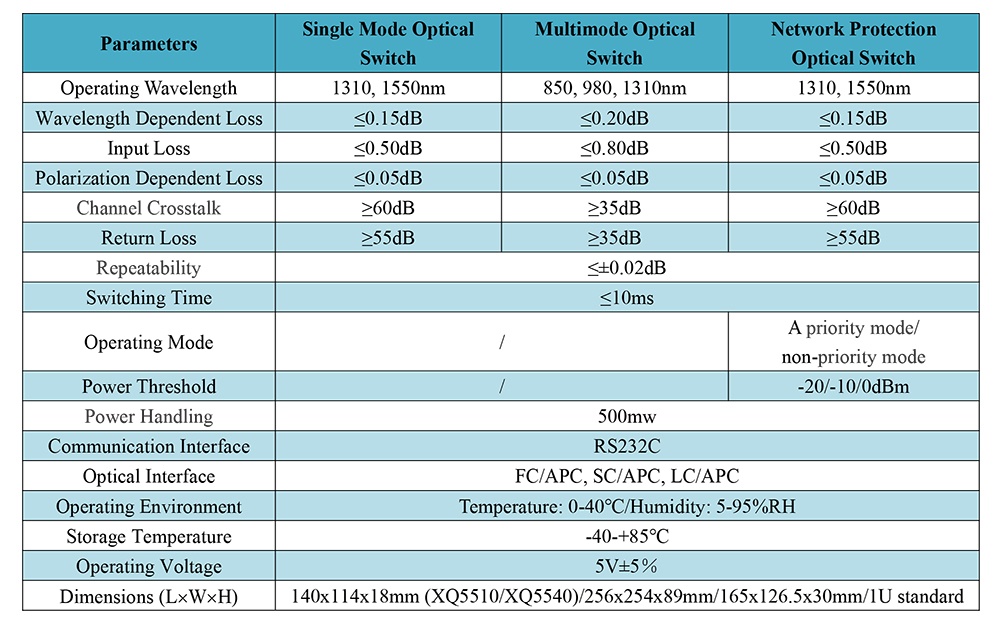

☆ Technical Specifications：
|
Parameters |
Single Mode Optical Switch |
Multi Mode Optical Switch |
Network protection Optical Switch |
|
Wavelength (nm) |
1310、1550 |
850、980、1310 |
1310、1550 |
|
Wavelength Dependent Loss（dB) |
≤0.15 |
≤0.20 |
≤0.15 |
|
Insertion Loss（dB) |
≤0.50 |
≤0.80 |
≤1.0 |
|
PDL（dB) |
≤0.05 |
≤0.05 |
≤0.05 |
|
Channel Crosstalk（dB) |
≥60 |
≥35 |
≥60 |
|
Return Loss（dB) |
≥55 |
≥35 |
≥55 |
|
Repeatability（dB) |
≤±0.02 |
||
|
Switching Time（ms） |
≤10 |
||
|
Operation Mode |
- |
A mode of priority/Nonpriority mode |
|
|
Power Threshold Threshold（dBm） |
- |
-20/-10/0 |
|
|
Power Handling（mw) |
500 |
||
|
Communication Interface |
RS232C / SNMP (Optional) |
||
|
Optical Interface |
FC/APC、SC/APC、LC/APC |
||
|
Operation Temperature(℃) |
-5~+70 |
||
|
Storage Temperature(℃) |
-40~+85 |
||
|
Working Voltage |
5V±5％ |
||
|
Dimension (L´W´H)（mm） |
164´105´28（XQ5510/XQ5540） |
||
☆ Ordering Information：
|
Product Type |
Principle |
Appearance |
Operating Type |
Operating Mode（XQ5540） |
Light Output Connector |
|
XQ5510 XQ5520 XQ5530 XQ5540 |
1-Mechanical 2-Electronically
|
M-Module B-Benchtop R-Rack |
1- 1310/1550nm Single mode 2- 850/980/1310nm Multi mode |
1-No mode 2-A mode of priority 3-Nonpriority mode |
FC/UPC FC/APC SC/APC ST/APC |
Example：XQ5510-1-M-1-1-FC/APC
