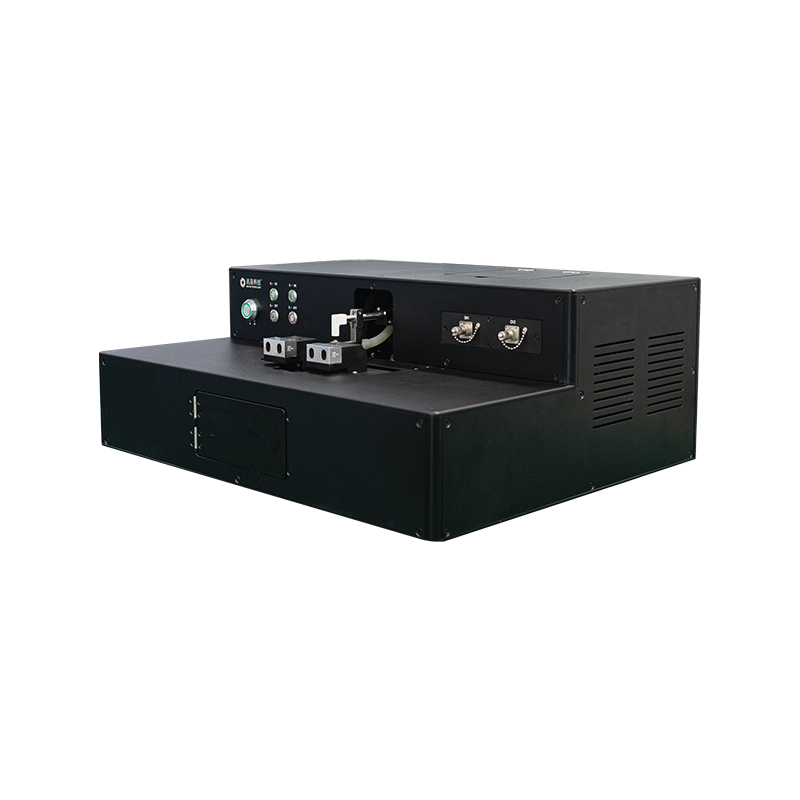

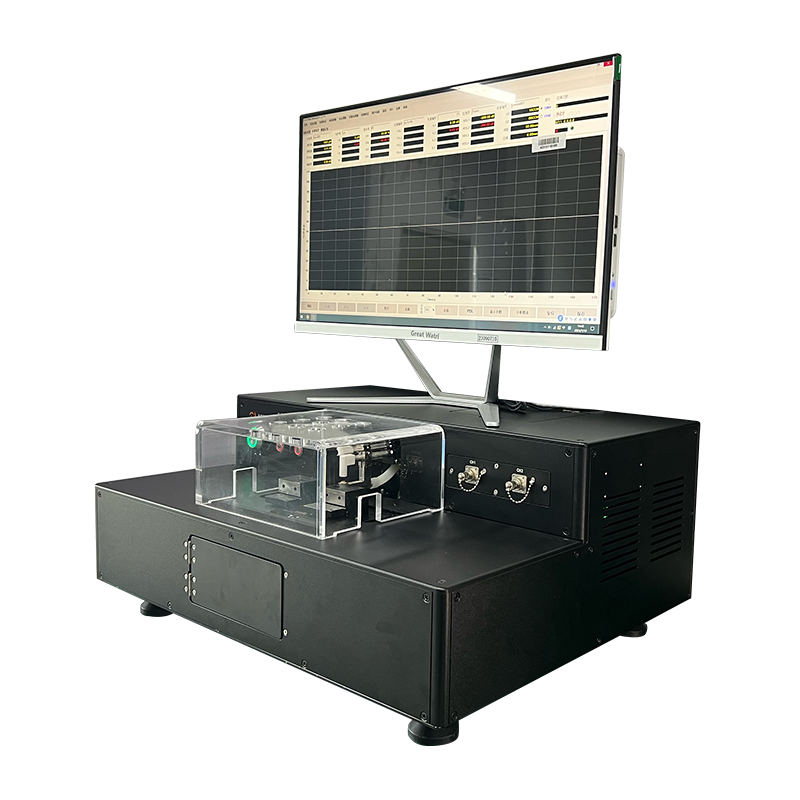

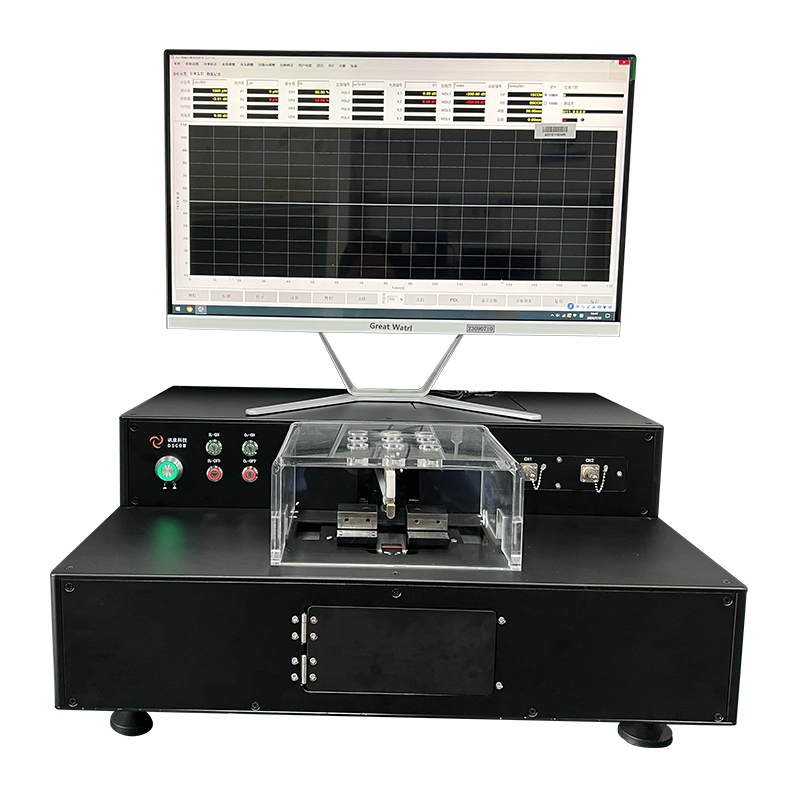

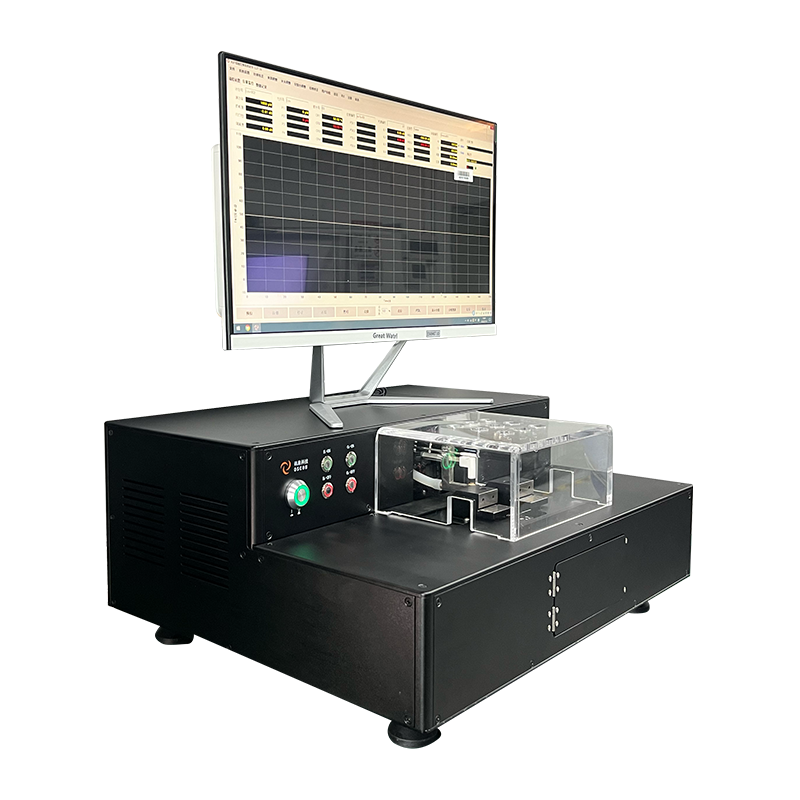

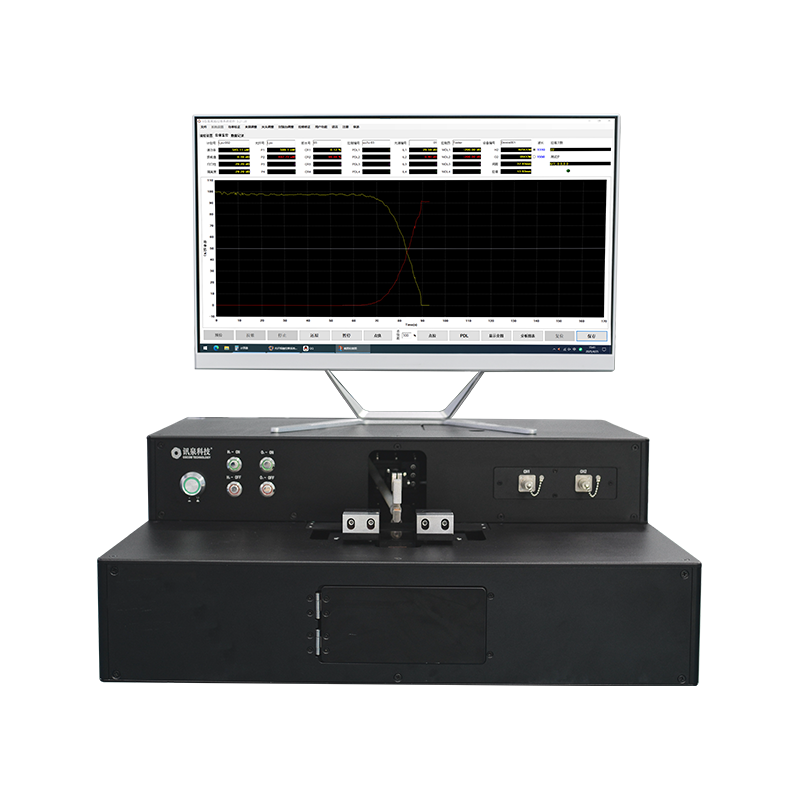

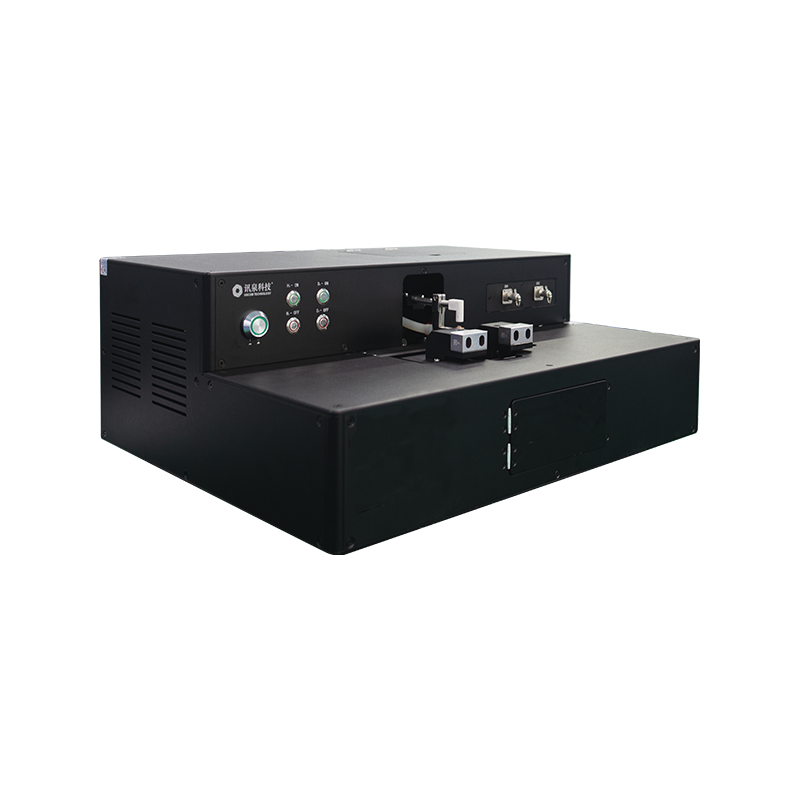

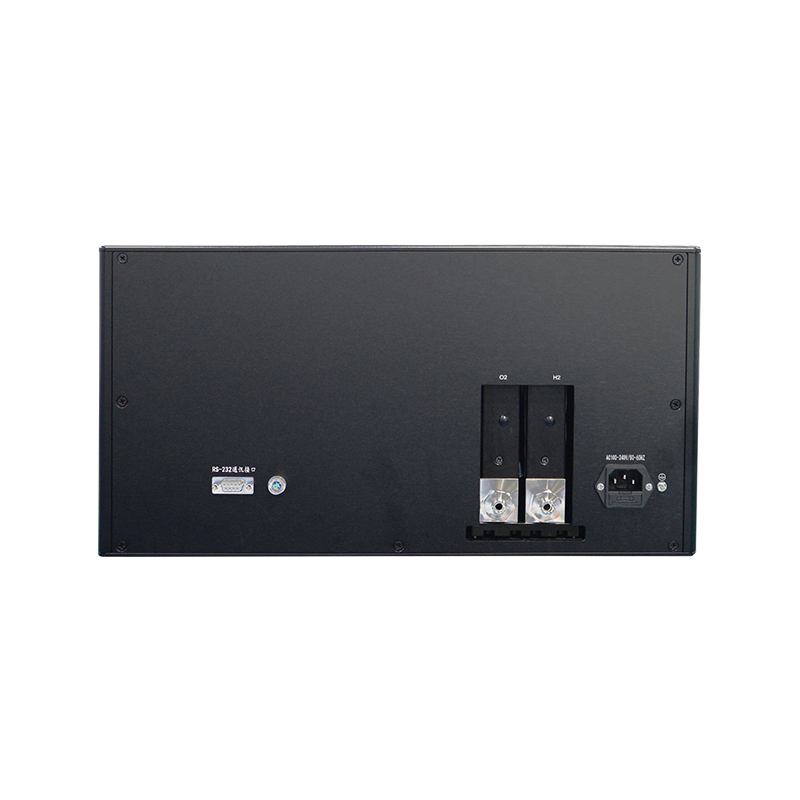

Normal 1x2 Fiber Coupler Tapering System (XQ7110)
Product Description:
XQ7110 is designed for producing normal 1x2/2x2 fiber spliter or fiber coupler, including SSC, DWC, and TWC with different types of coupling ratio, and 980/1550 WDM, 1310/1550 WDM, 850multimode fiber components ect. XQ7110 is easy to use, stable and reliable, normal output of 1x2 fiber coupler for a skilled operator is ≥100PCS/8hours.

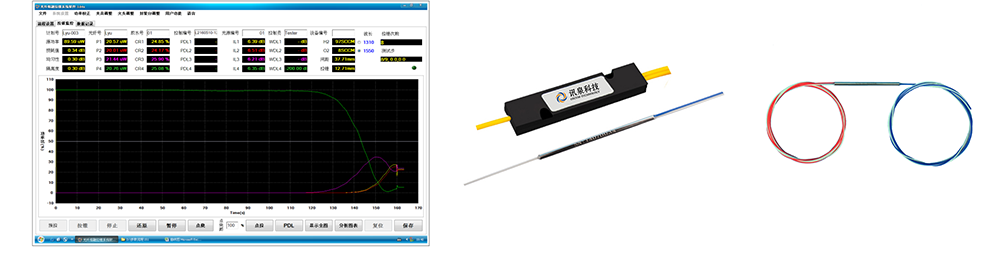

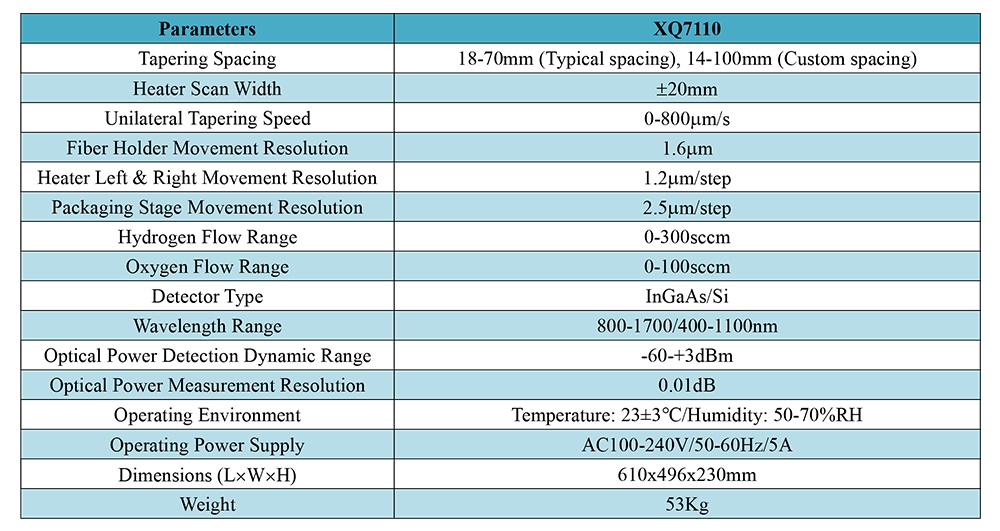

Technical Specifications:
Parameters |
Unit |
Values |
Taper Length |
mm |
18~60 |
Scanning Width |
mm |
±15 |
Taper Speed |
mm/s |
0~800 |
Taper Accuracy |
mm |
0.8 |
Scanning Accuracy |
mm/step |
0.02 |
Motion Accuracy of Packaging Stage |
mm/step |
0.02 |
Range of H2 Gas Flow |
sccm |
0~300 |
Range of O2 Gas Flow |
sccm |
0~100 |
Photo Detector |
- |
InGaAs/Si |
Wavelength |
nm |
800~1700/400~1100/800~2600 |
Dynamic Range of Optical Power Detection |
dBm |
-60~+3 |
Resolution of Optical Power Detection |
dB |
0.01 |
Operation Environment |
- |
Temperature:23±2℃ / Humidity:50~60%RH |
Power Supply |
- |
AC100~240V/50~60Hz/5A |
Dimensions(L´W´H) |
mm |
610´496´270 |
Ordering Information:
Product Type |
XQ7111 |
XQ7112 |
XQ7113 |
Application |
1´2 Single Mode Fiber Coupler |
1´2 WDM |
1´2 Multimode Fiber Coupler |
Configurations |
Hybrid Heater(Ceramics) 1´2 Fiber Holder 2 Channel PD |
Separated Heater(Ceramics) |
Separated Heater(Glass) |
