Optical Fiber/Glass Splice Equipment

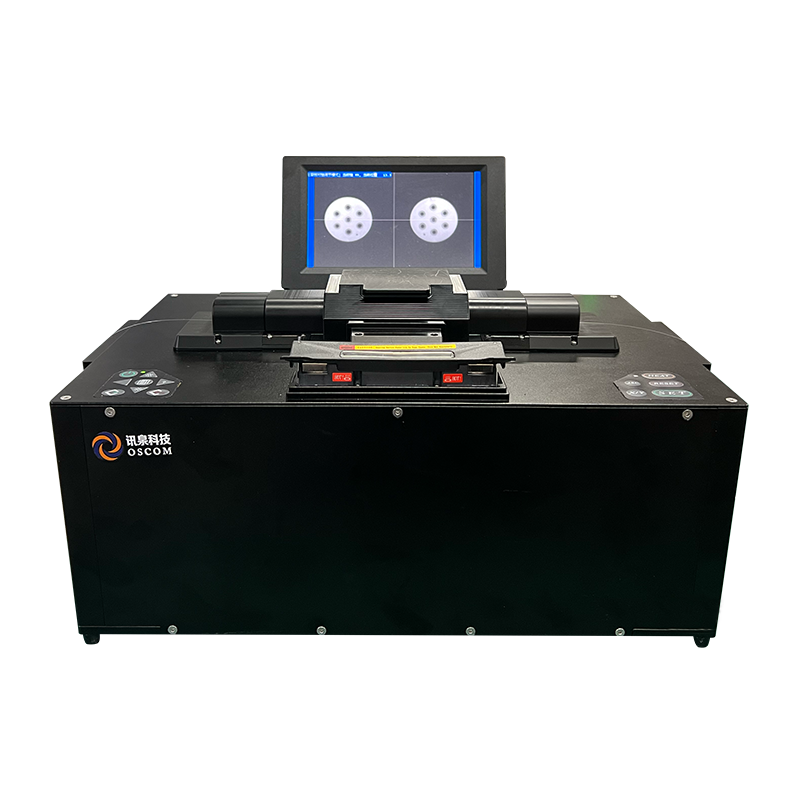

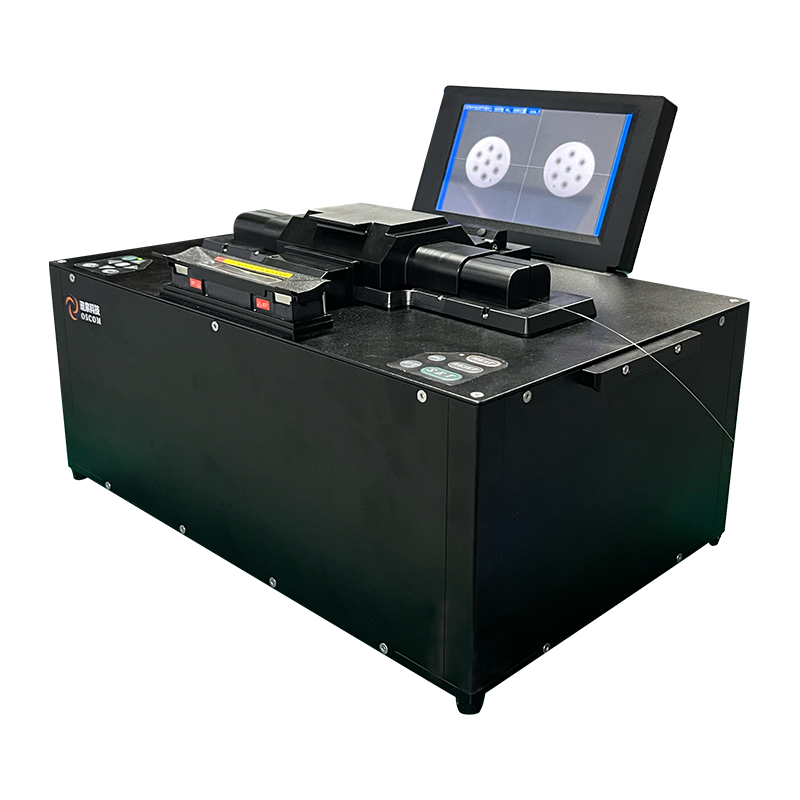

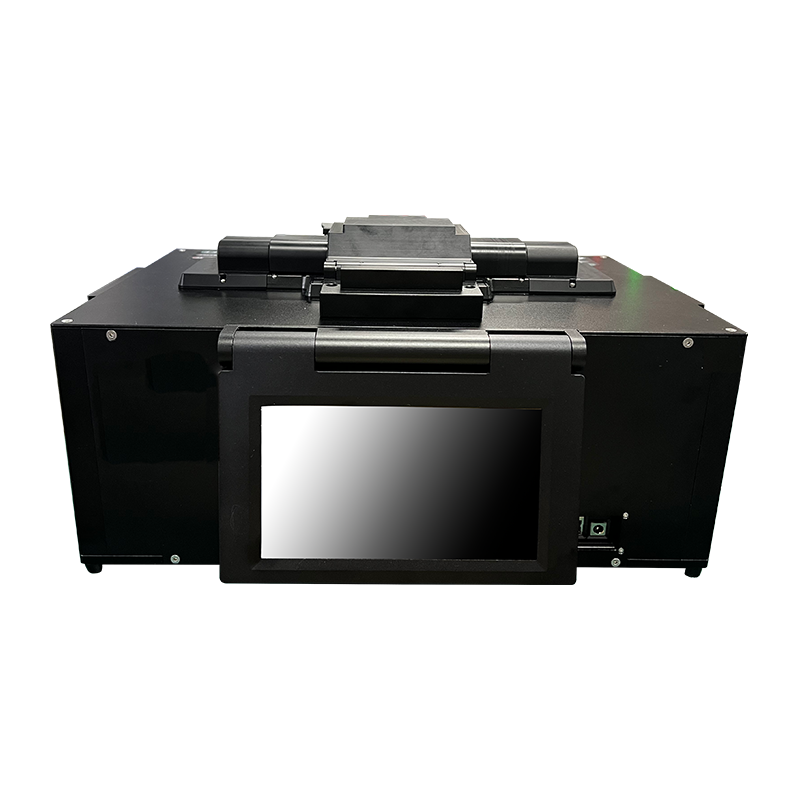

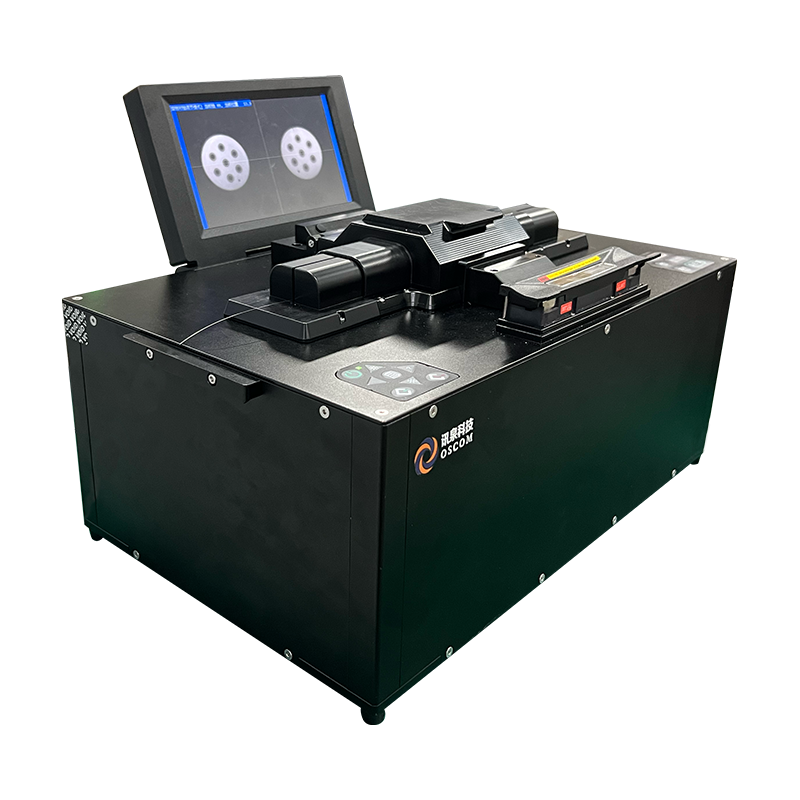

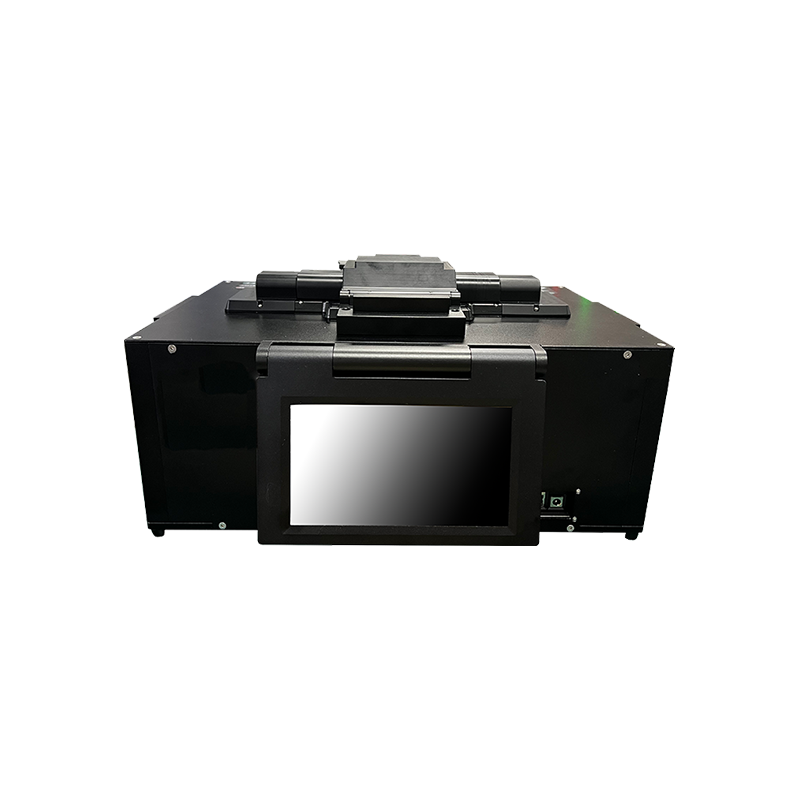

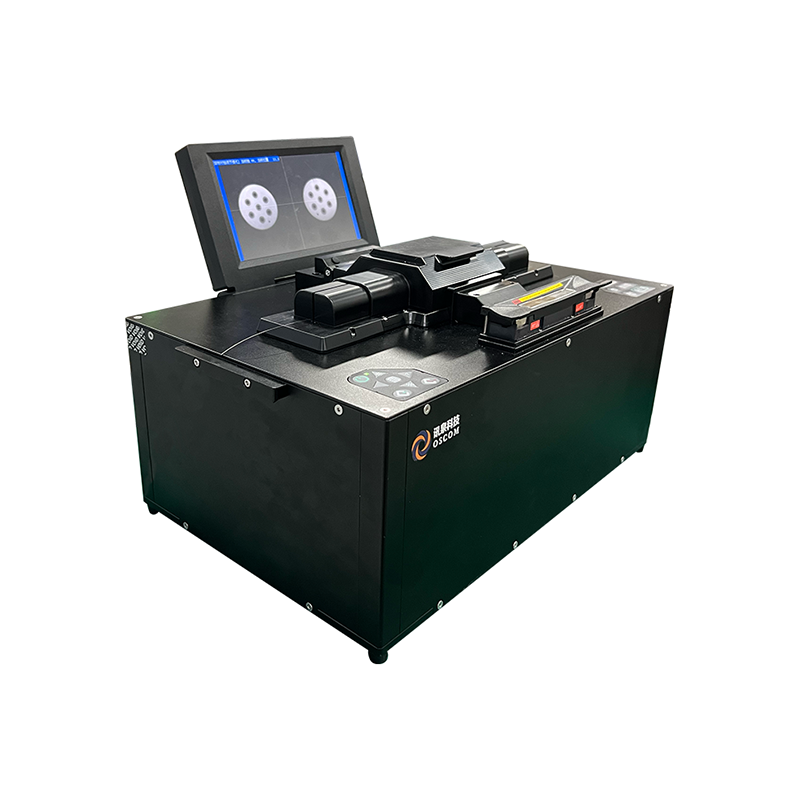

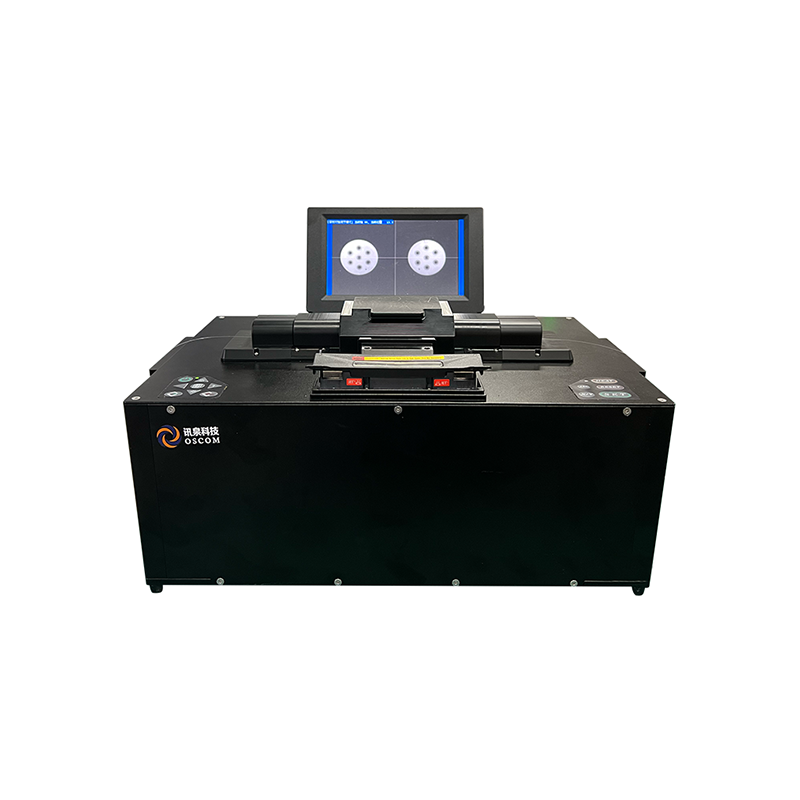

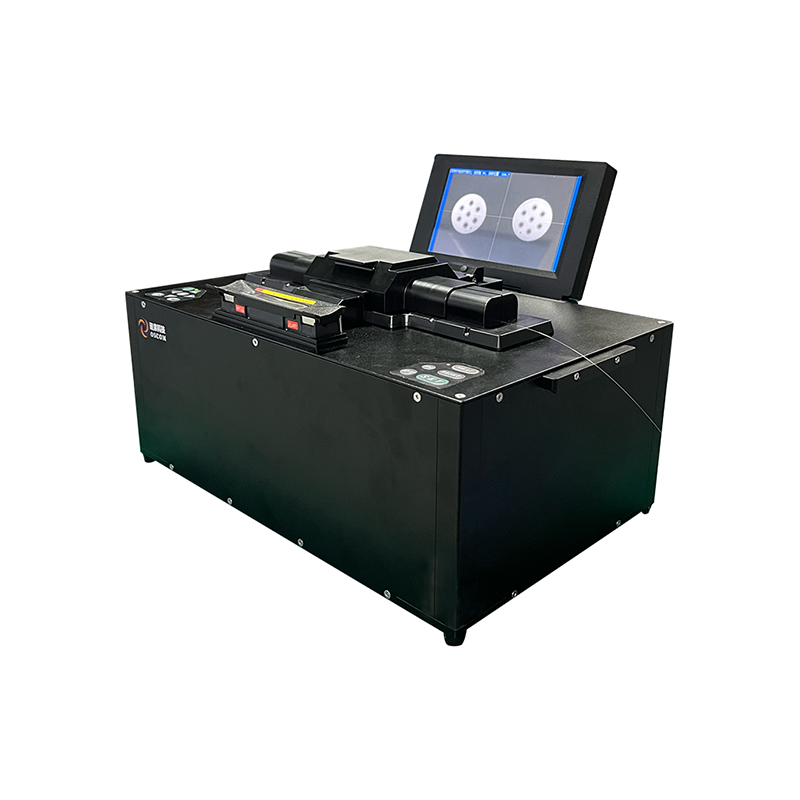

Two Electrodes Multi-core Fiber Splicer (XQ7260D)

XQ7260D is a two electrodes multi-core fiber splicer which is designed independently by OSCOM Technology. It’s heat source is an electric arc. It can splice multi-core fiber, large core fiber and PM fiber.XQ7260D has fiber end face imaging system, which can more easily observe the fiber cleaving quality and the alignment of the polarization-maintaining fiber. At the same time, different specifications of optical fiber holders can be replaced to meet the splicing of fiber with different core diameters.

     ● Low splicing loss.

     ● High splicing quality.

     ● Artificial intelligence touch screen.

     ● Visual fiber end face imaging system.
